MPNYL2-180 - 16-14 AWG Male Bullet Connector - NYLON
Precio original
$9.78
-
Precio original
$9.78
Precio original
$9.78
$9.78
-
$9.78
Precio actual
$9.78
SKU MPNYL2-180
Disponibilidad:
en stock, listo para ser enviado

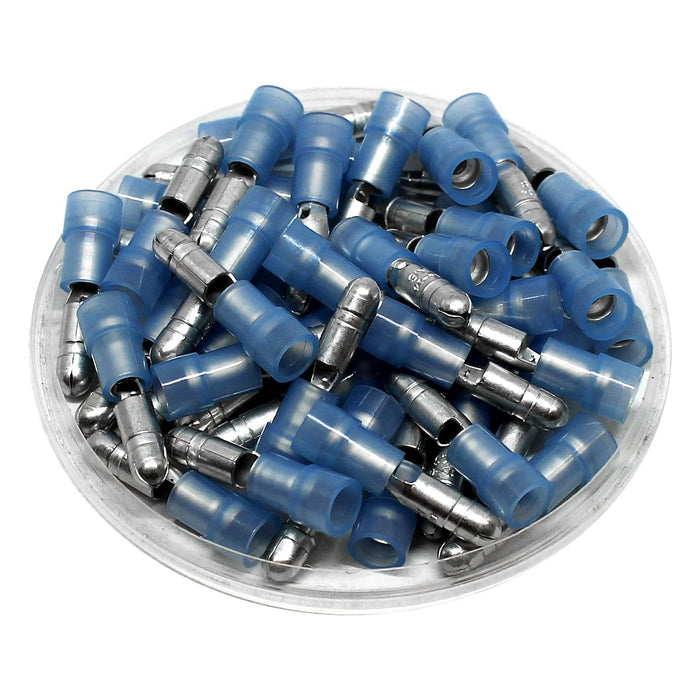

Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Wire Size: | 16-14 AWG |
Color: | Blue |
C: | 2.3mm (.09") |
L: | 23.7mm (.93") |
F: | 10.8mm (.43") |
B: | 11mm (.43") |
W: | 4.5mm (.18") |
D: | 4.5mm (.18") |
Material: | Tin-Plated Brass |
Max Electrical Rating: | 105°C (221°F) - 600 Volts |
Max Electrical Current: | 15A |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
