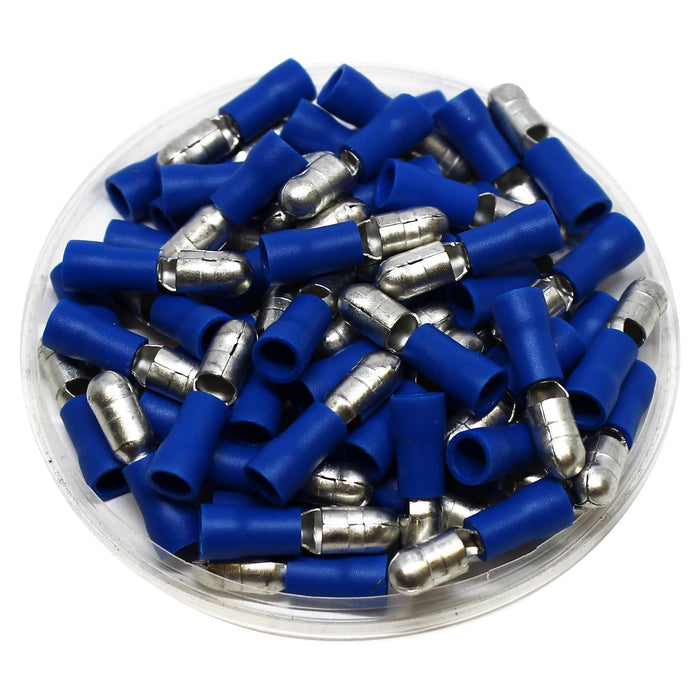

MPV2-195 - Vinyl Insulated Male Bullet Connectors - 16 AWG to 14 AWG

Precio original $5.31 - Precio original $5.31
Precio original
$5.31
$5.31 - $5.31
Precio actual $5.31
SKU MPV2-195
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on. Double crimp terminals are built with an additional inner copper barrel which:
  • Substantially reduces the strain on the wire strands.
  • Transfers strain to the wire jacket.
  • Provides a stronger connection.
  • Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

    Wire Range: 16-14 AWG
    W: 0.19" (5.0mm)
    F: 0.33" (8.5mm)
    L: 0.82" (21.0mm)
    B: 0.39" (10.0mm)
    D: 0.17" (4.5mm)
    T: 0.01" (0.4mm)
    Terminal Material: Tin-Plated Brass
    Insulation Material: Vinyl
    Insulation Color: Blue
    Temperature Rating: 105oC - 600 Volts
    Max AMP Rating: 15 AMP
    UL Recgonized: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:

    Cross References

    Cross Reference Parts:
    None:
