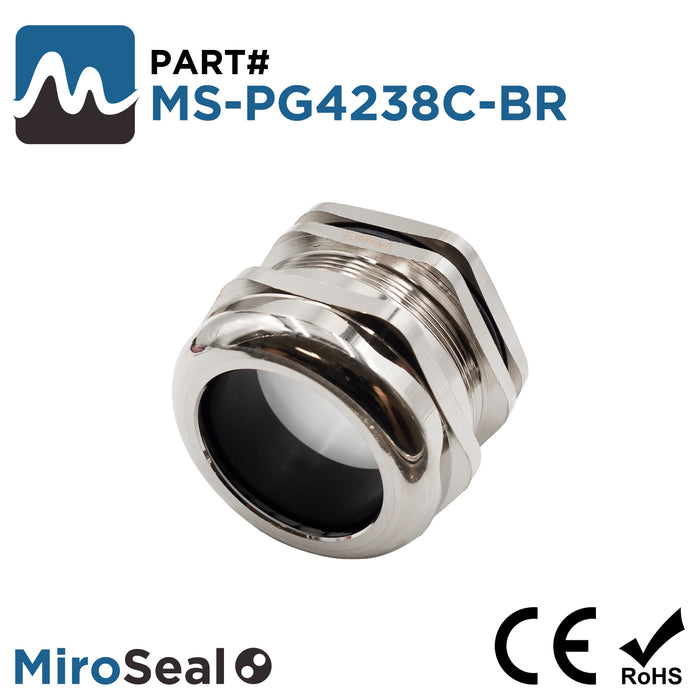

MS-PG4238C-BR - MiroSeal PG42 Cable Gland, Nickel Plated Brass, Range: 1-1/4" to 1-1/2", 1 Piece
Precio original
$15.50
-
Precio original
$15.50
Precio original
$15.50
$15.50
-
$15.50
Precio actual
$15.50
SKU MS-PG4238C-BR
Quantity: 1 Piece
Disponibilidad:
en stock, listo para ser enviado
PG42 Thread Nickel Plated Brass Cable Gland with Lock Nut and O-Ring.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG42 |
| Cable Range: | 1-1/4" to 1-1/2" (32-38mm) |
| C1: | 52.1mm (2.05") |
| C2: | 38.6mm (1.52") |
| D2: | 38.6mm (1.52") |
| B1: | 39.1mm (1.54") |
| L1: | 8.9mm (0.35") |
| L2: | 27.5mm (1.08") |
| L3: | 23.5mm (0.93") |
| Material: | Nickel-Plated Brass |
| Flammability: | PA (Nylon), UL 94 |
| Ingress Protection: | IP68 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
