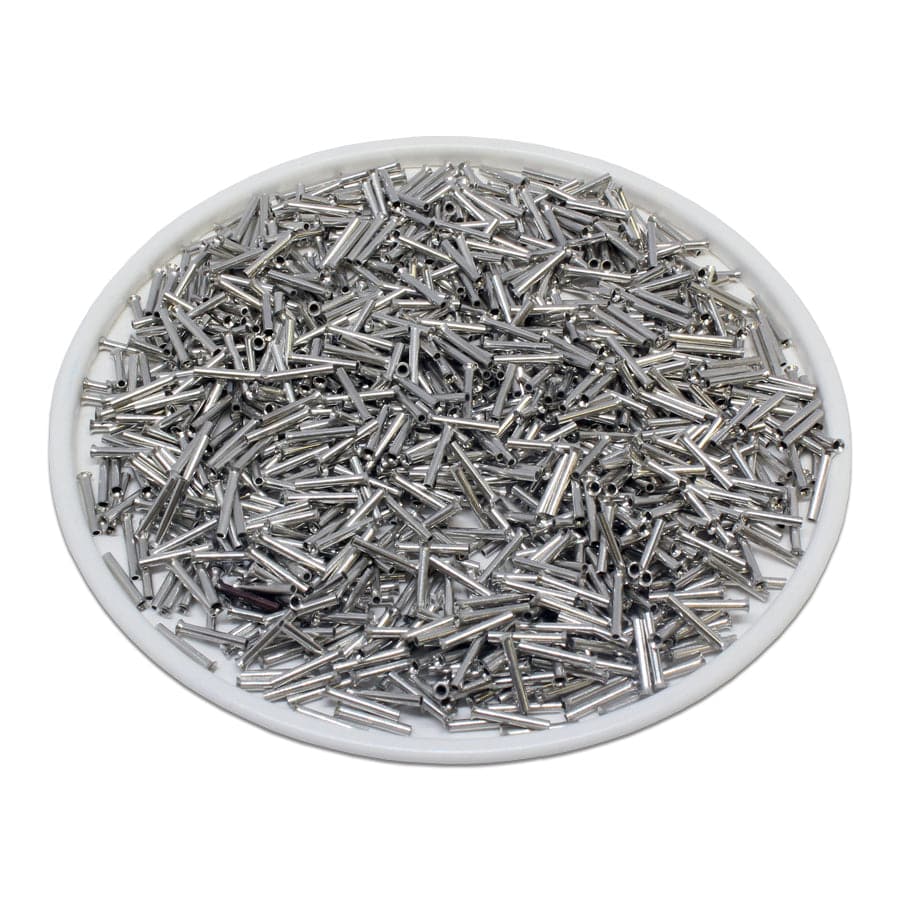

N01407 - 26 AWG (7mm Pin) Non Insulated Ferrules
Precio original
$23.97
-
Precio original
$23.97
Precio original
$23.97
$23.97
-
$23.97
Precio actual
$23.97
SKU N01407
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
ABB: XUSG01949
Burndy: 10097754 YF2807UI
Hubbell: 10097754 YF2807UI
Crimp Supply: 13A12001
ZF: V3AE9399
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 26 AWG (0.14mm2) |
| Material: | Tin-Plated Copper |
| L1: | 7.0mm (0.27") |
| D: | 1.18mm (0.046") |
| D1: | 0.7mm (0.03") |
| D2 | 1.54mm (0.060") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 5.5AMP |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:ABB: XUSG01949
Burndy: 10097754 YF2807UI
Hubbell: 10097754 YF2807UI
Crimp Supply: 13A12001
ZF: V3AE9399
Documents
Click to view product spec sheet:
