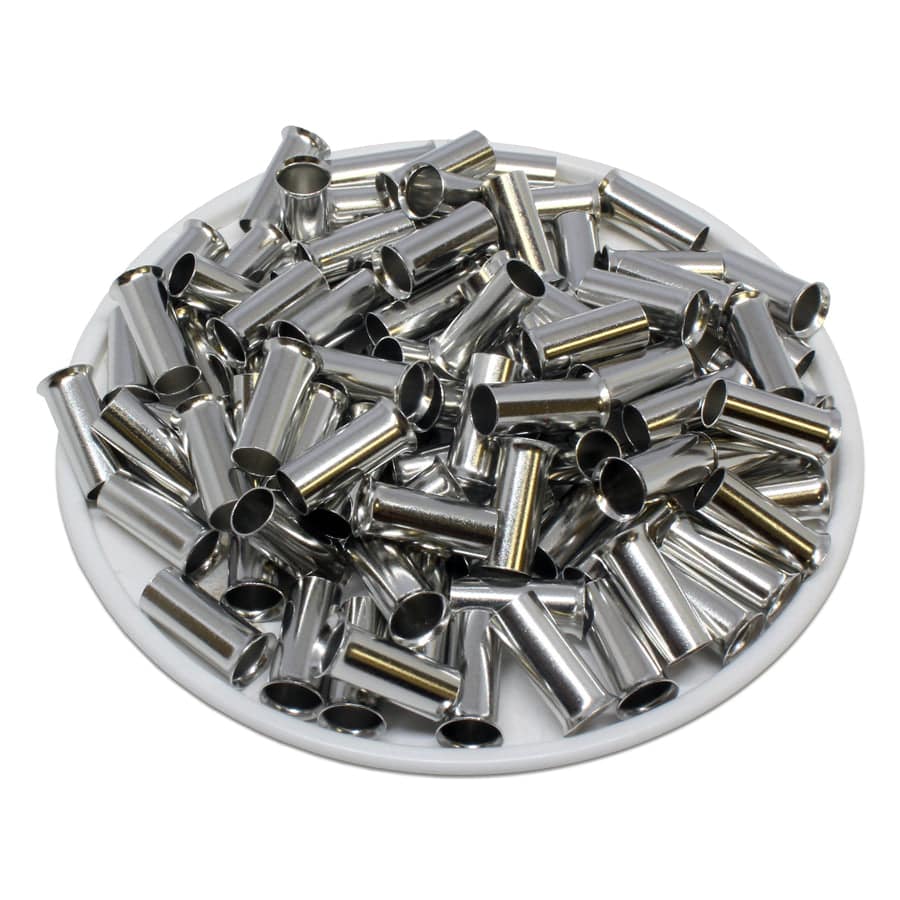

N100012 - 8 AWG (12mm Pin) Non Insulated Ferrules
Precio original
$0.00
-
Precio original
$10.48
Precio original
$10.48
$0.00
-
$10.48
Precio actual
$10.48
SKU N100012
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 8AWG (10.00mm2) |
| Material: | Tin-Plated Copper |
| L1: | 12mm (0.47") |
| D: | 4.6mm (0.18") |
| D1: | 4.2mm (0.165") |
| D2: | 5.8mm (0.23") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 70A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:ABB: 30458423
Altech Corp: 2228.0
American Electrical: 1212110
Burndy Hubbell: 10097787 YF0812UI
Crimp Supply: 13A12011
Eclipse: 701-064
Elecdirect: FERN-8-12B
Greenlee: 76/12VZ
McMaster-Carr: 9681K71 9681K35
Panduit: F83-12-D
Phoenix Contact: 3200331
Thomas Betts: F9022
WAGO: 216-109
Weidmuller: 282900000
Weland: 06.600.4727.0
ZF: V3AE9070 - V3AE009070
Documents
Click to view product spec sheet:
