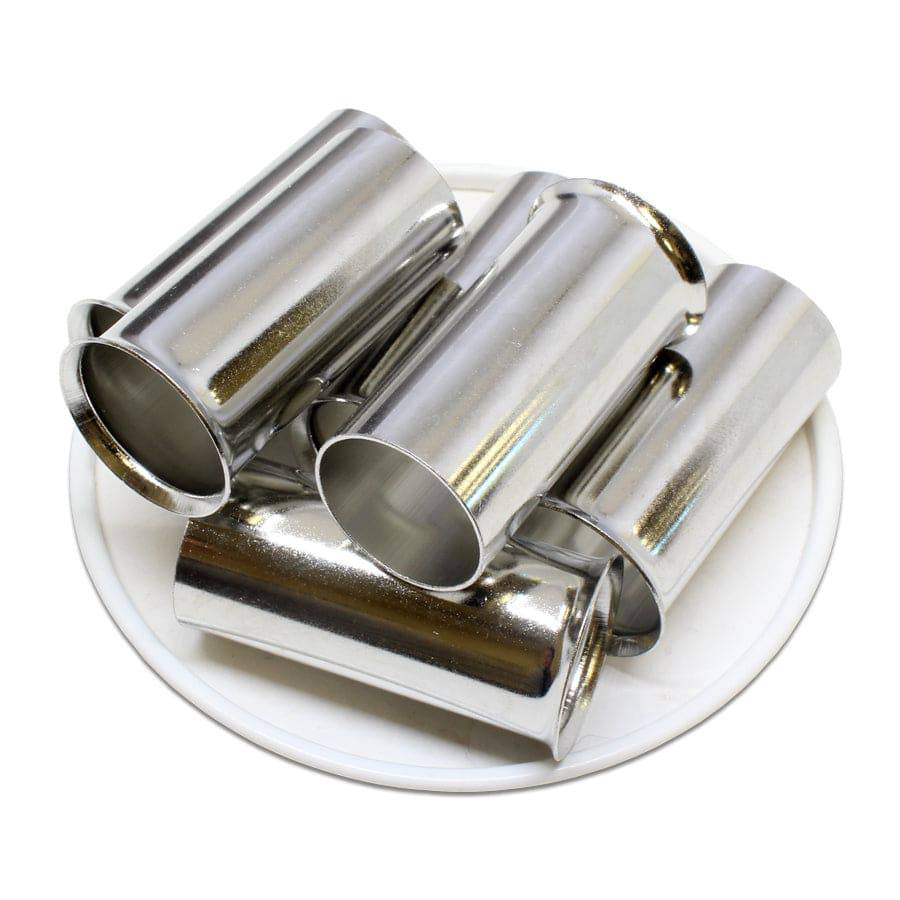

N1200038 - 4/0 AWG (38mm Pin) Non Insulated Ferrules

Precio original $28.98 - Precio original $28.98
Precio original
$28.98
$28.98 - $28.98
Precio actual $28.98
SKU N1200038
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 25 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 4/0 AWG (120mm2)
Material: Tin-Plated Copper
L1: 38mm (1.50")
D: 17.7mm (0.69")
D1: 16.7mm (0.65")
D2 19mm (0.75")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 360AMP
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross References:

Greenlee: 83/38VZ
