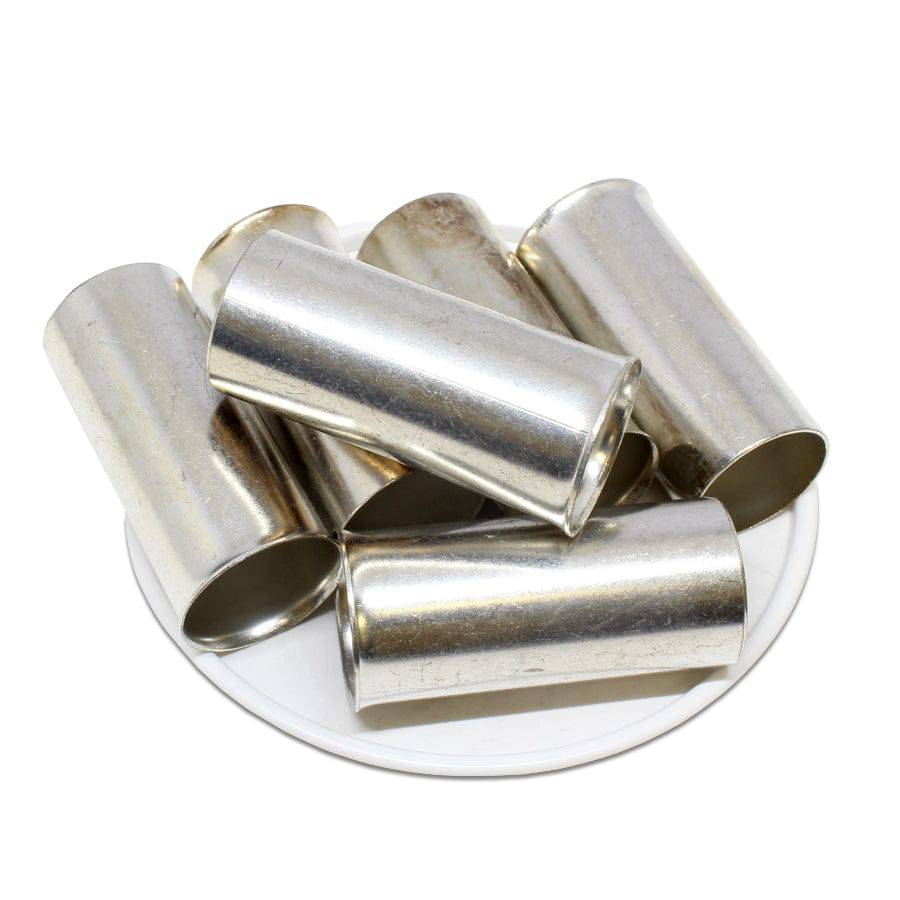

N1200040 - 4/0 AWG (40mm Pin) Non Insulated Ferrules
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 4/0 AWG (120mm2) |
| Material: | Tin-Plated Copper |
| L1: | 40mm (1.50") |
| D: | 17.7mm (0.69") |
| D1: | 16.7mm (0.65") |
| D2 | 19mm (0.75") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 360AMP |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References:
American Electrical: 12401120
Burndy Hubbell: 10097817 YF4/040UI
Greenlee: 83/40VZ
