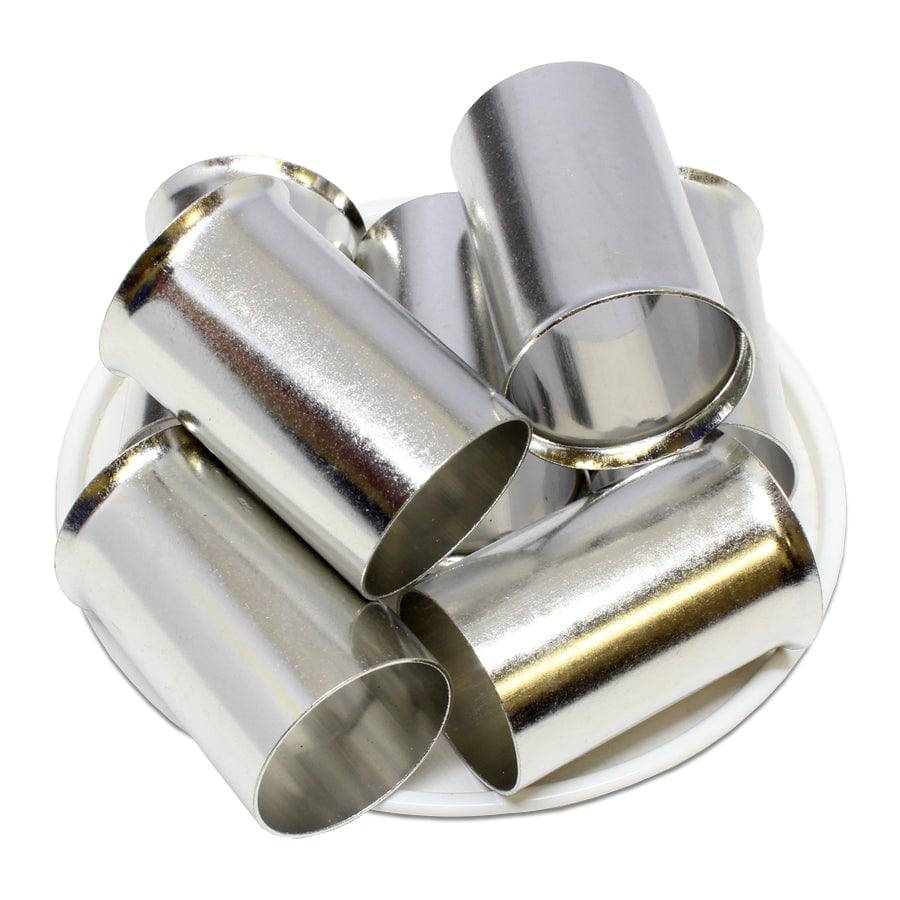

N1500032 - 300MCM (32mm Pin) Non Insulated Ferrules

Precio original $22.08 - Precio original $22.08
Precio original
$22.08 - $22.08
Precio actual $22.08
SKU N1500032
Piece Quantity: 25 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 300MCM
Material: Tin-Plated Copper
L1: 32mm (1.26")
D: 20.6mm (0.81")
D1: 19.6mm (0.77")
D2 23mm (0.91")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 445A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:

Cross References:

ABB: XUSG02020
Altech Corp: 2793
American Electrical: 123211500
Burndy Hubbell: 10097818 YF25032UI
Crimp Supply: 13A12019
Greenlee: 84/32VZ
Weidmuller: 9036250000
ZF: V3AE9393


Click to view product spec sheet:
