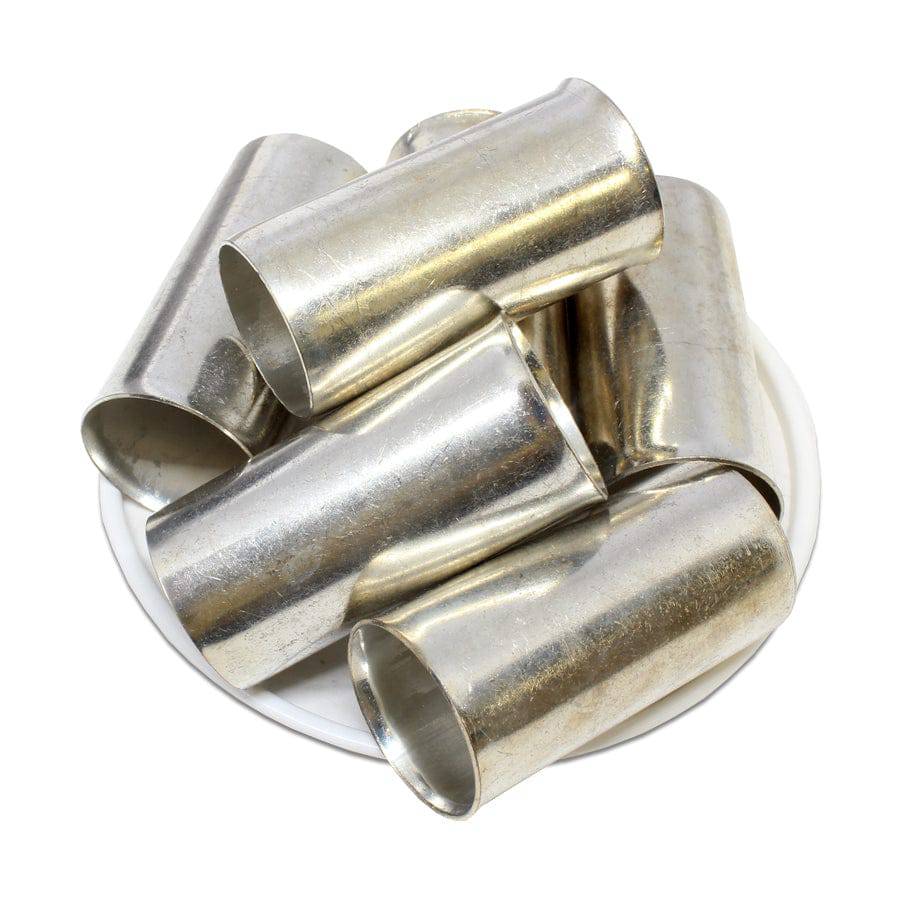

N1500040 - 300MCM (40mm Pin) Non Insulated Ferrules
Precio original
$31.51
-
Precio original
$31.51
Precio original
$31.51
$31.51
-
$31.51
Precio actual
$31.51
SKU N1500040
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 300MCM |
| Material: | Tin-Plated Copper |
| L1: | 40mm (1.57") |
| D: | 20.6mm (0.81") |
| D1: | 19.6mm (0.77") |
| D2 | 23mm (0.91") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 445A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:ABB: XUSG02021
Burndy Hubbell: 10097820 YF25040UI
Greenlee: 84/40VZ
Documents
Click to view product spec sheet:
