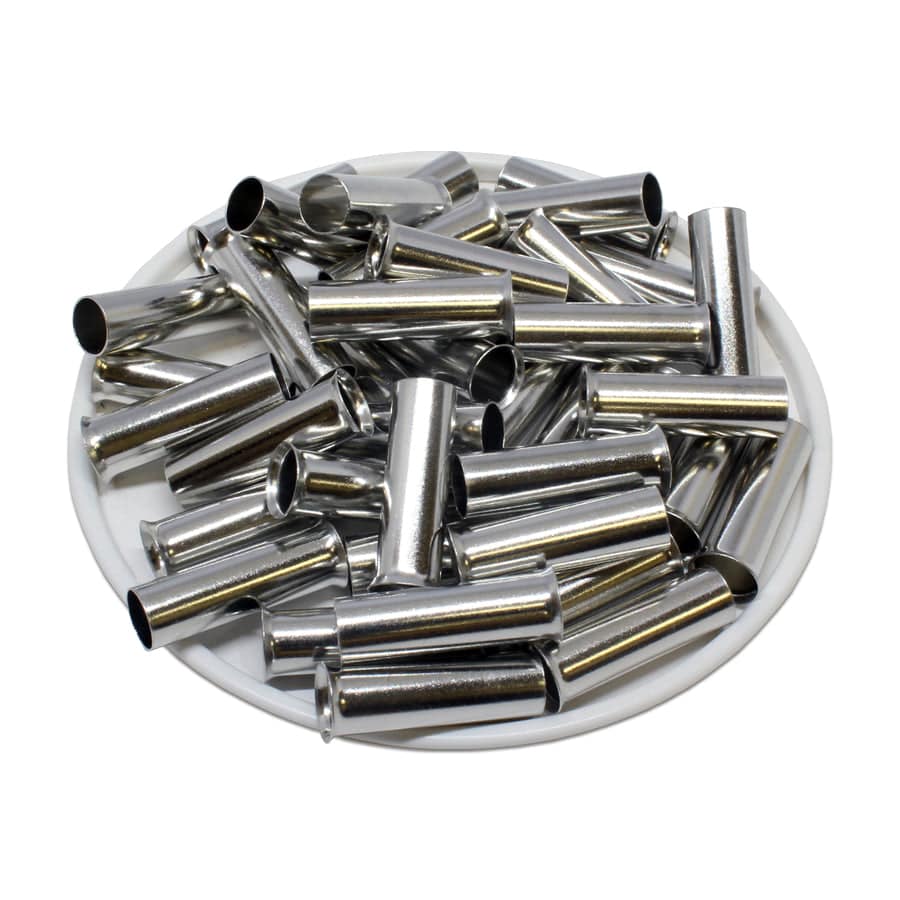

N160020 - 6 AWG (20mm Pin) Non Insulated Ferrules

Precio original $16.70 - Precio original $16.70
Precio original
$16.70
$16.70 - $16.70
Precio actual $16.70
SKU N160020
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 250 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 6 AWG (16.00mm2)
Material: Tin-Plated Copper
L1: 20mm (0.78")
D: 6.4mm (0.25")
D1: 5.8mm (0.23")
D2 7.5mm (0.295")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 95A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

ABB: XUSG01986
American Electrical: 1220116
Greenlee: 77/20VZ
Panduit: F84-20-TL
