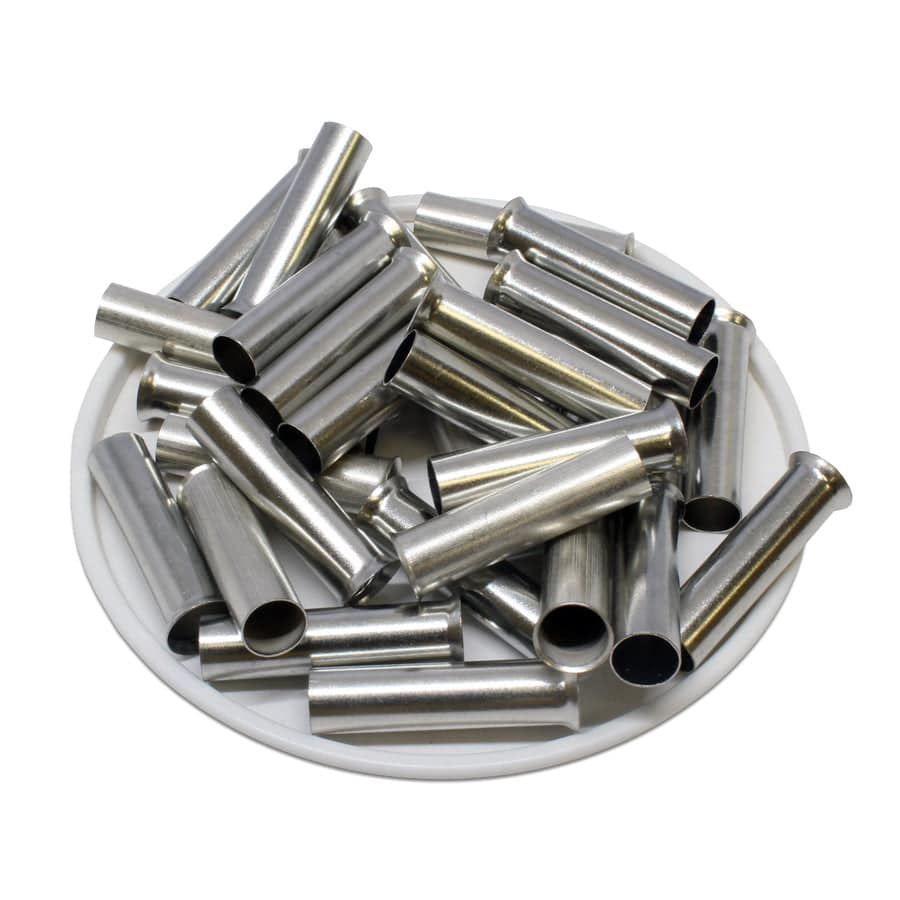

N160025 - 6 AWG (25mm Pin) Non Insulated Ferrules

Precio original $24.42 - Precio original $24.42
Precio original
$24.42 - $24.42
Precio actual $24.42
SKU N160025
en stock, listo para ser enviado
Piece Quantity: 250 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 6 AWG (16.00mm2)
Material: Tin-Plated Copper
L1: 25mm (0.98")
D: 6.4mm (0.25")
D1: 5.8mm (0.23")
D2 7.5mm (0.295")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 95A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:

Cross References

Cross References:

ABB: XUSG01987
American Electrical: 1225116
Burndy Hubbell: 10097794 YF0625UI - D-60655-03
Eclipse: 701-070
Greenlee: 77/25VZ
Panduit: F84-25-TL
Thomas Betts: F9028
Weidmuller: 9004150000
ZF: V3AE9076


Click to view product spec sheet:
