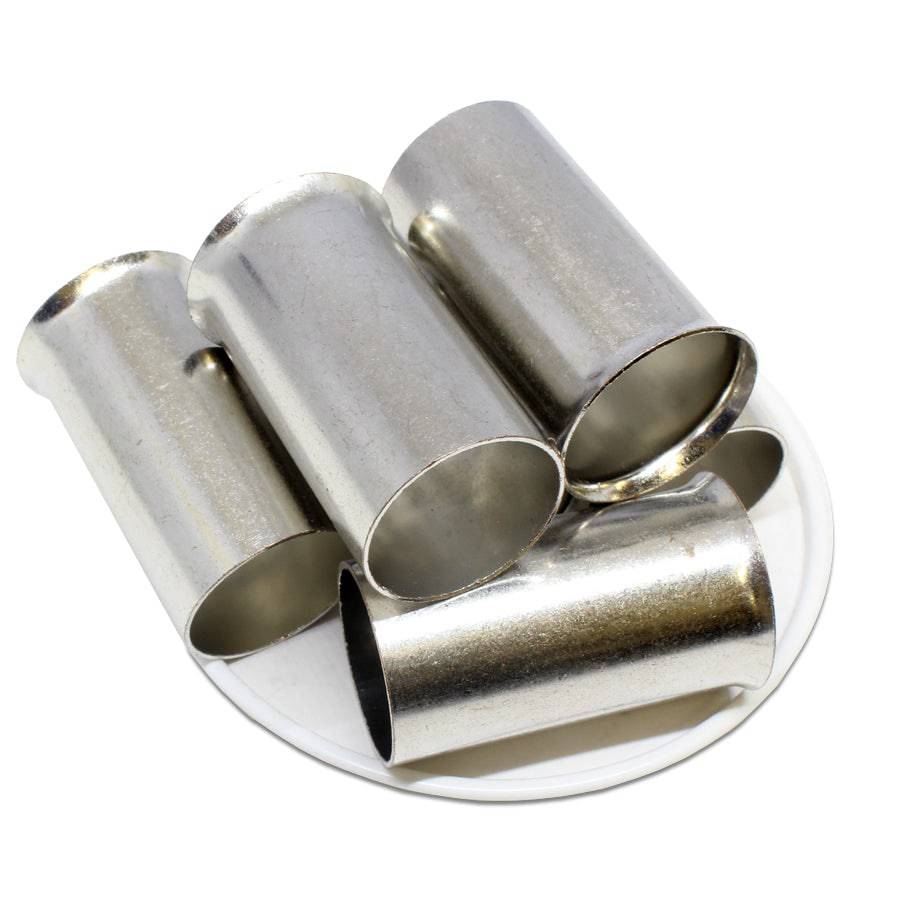

N1850040 - 350MCM/373.3 DLO (40mm Pin) Non Insulated Ferrules
Precio original
$0.00
-
Precio original
$44.71
Precio original
$44.71
$0.00
-
$44.71
Precio actual
$44.71
SKU N1850040
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUSG02023
American Electrical: 124011850
Burndy Hubbell: 10097823 YF35040UI YF35040UI
Greenlee: 85/40VZ
Panduit: F93-40-Q
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 350MCM - 373.3 DLO |
| L1: | 40mm (1.57") |
| D: | 21.4mm (.84") |
| D1: | 20.2mm (0.80") |
| D2: | 23.9mm (0.94") |
| Material: | Tin Plated Copper |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 445A |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUSG02023
American Electrical: 124011850
Burndy Hubbell: 10097823 YF35040UI YF35040UI
Greenlee: 85/40VZ
Panduit: F93-40-Q
Documents
Click to view product spec sheet:
