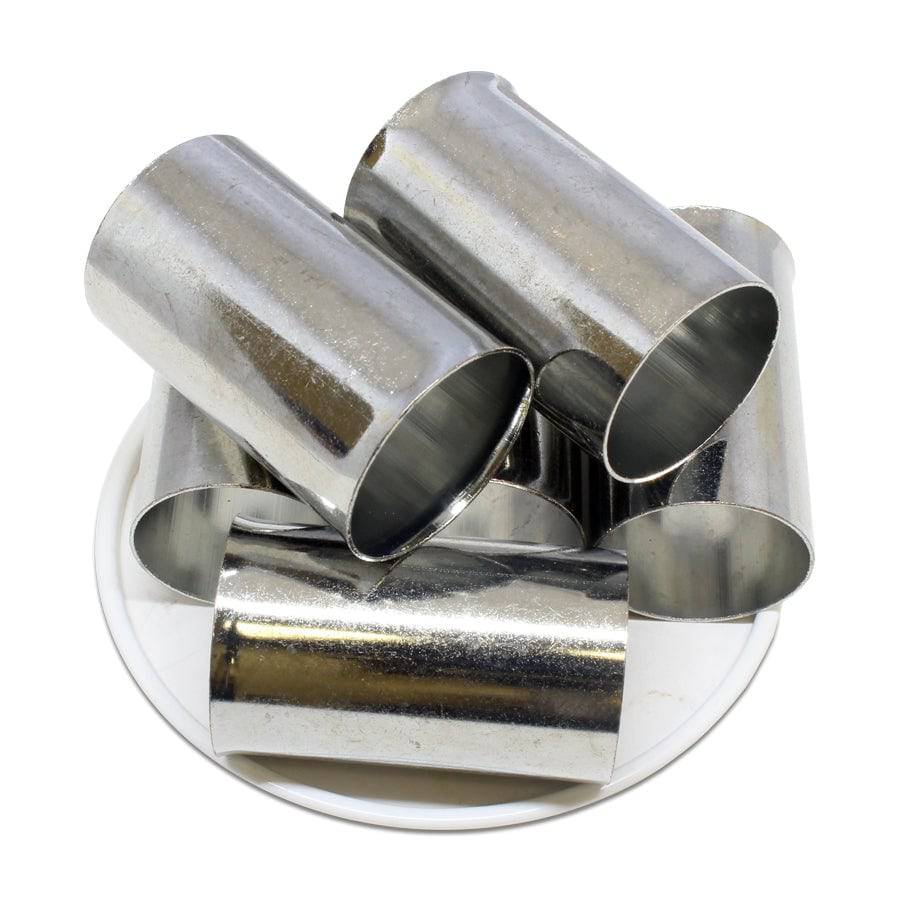

N2400040 - 500MCM (40mm Pin) Non Insulated Ferrules

Precio original $67.85 - Precio original $67.85
Precio original
$67.85 - $67.85
Precio actual $67.85
SKU N2400040
en stock, listo para ser enviado
Piece Quantity: 25 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 500MCM
Material: Tin-Plated Copper
L1: 40mm (1.57")
D: 24.2mm (0.89")
D1: 23mm (0.91")
D2 25mm (0.98")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 545AMP
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:

Cross References

Cross Reference Parts:

Altech Corp: 2815.5
Panduit: F94-40-Q
