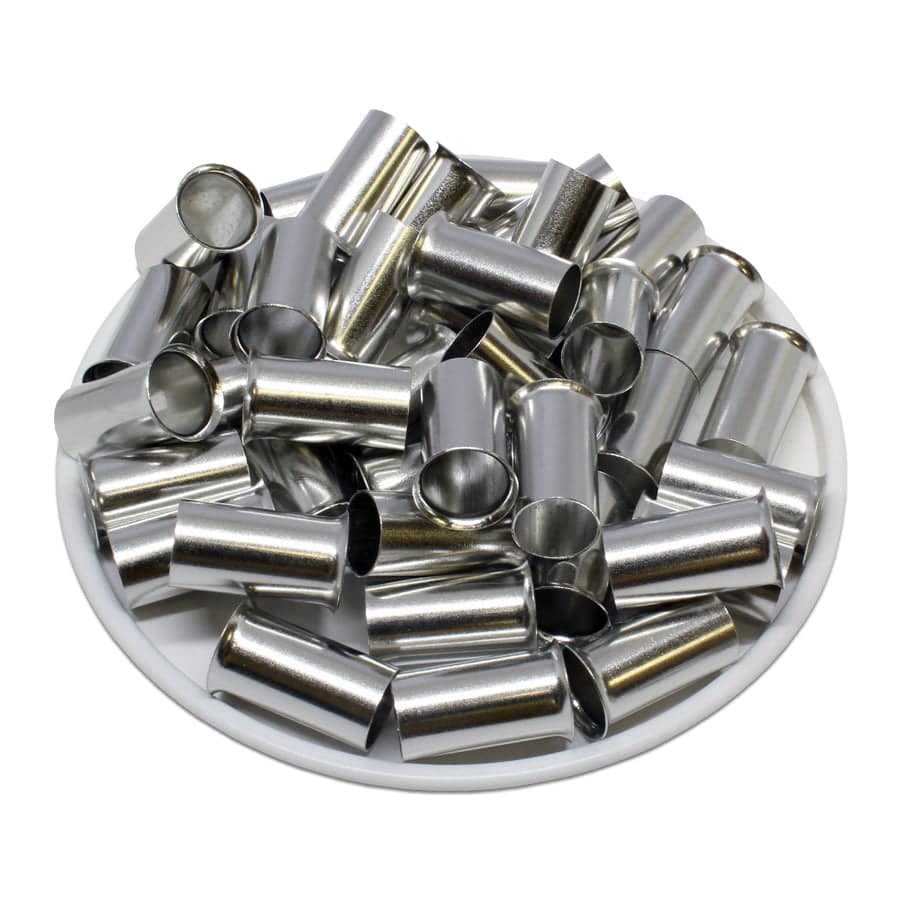

N250015 - 4 AWG (15mm Pin) Non Insulated Ferrules

Precio original $7.14 - Precio original $7.14
Precio original
$7.14 - $7.14
Precio actual $7.14
SKU N250015
en stock, listo para ser enviado
Piece Quantity: 100 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 4AWG (25.00mm2)
Material: Tin-Plated Copper
L: 15mm (0.59")
D: 7.8mm (0.31")
D1: 7.2mm (0.28")
D2: 9.1mm (0.36")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 125A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:

Cross References

Cross Reference Parts:
American Electrical: 121510400
Burndy Hubbell: 10097796 YF1215UI - D-60655-06
Crimp Supply: 13A12013
Eclipse: 701-058
Greenlee: 74/15VZ
Panduit: F81-15-M
Thomas Betts: F9017
Weidmuller: 9004100000
ZF: V3AE9064
