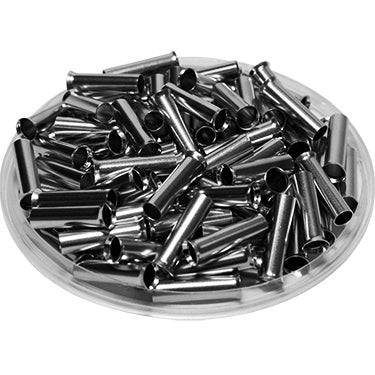

N25007 - 14AWG (7mm Pin) Non Insulated Ferrules

Precio original $12.73 - Precio original $12.73
Precio original
$12.73
$12.73 - $12.73
Precio actual $12.73
SKU N25007
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1000 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 14 AWG (2.50mm2)
Material: Tin-Plated Copper
L1: 7mm (0.27")
D: 2.6mm (0.10")
D1: 2.1mm (0.08")
D2 3.3mm (0.13")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 30A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

ABB: XUSG01825
Burndy Hubbell: 10097775 YF1407UI

Documents

Click to view product spec sheet:

Videos

Click here to check out our YouTube channel:
