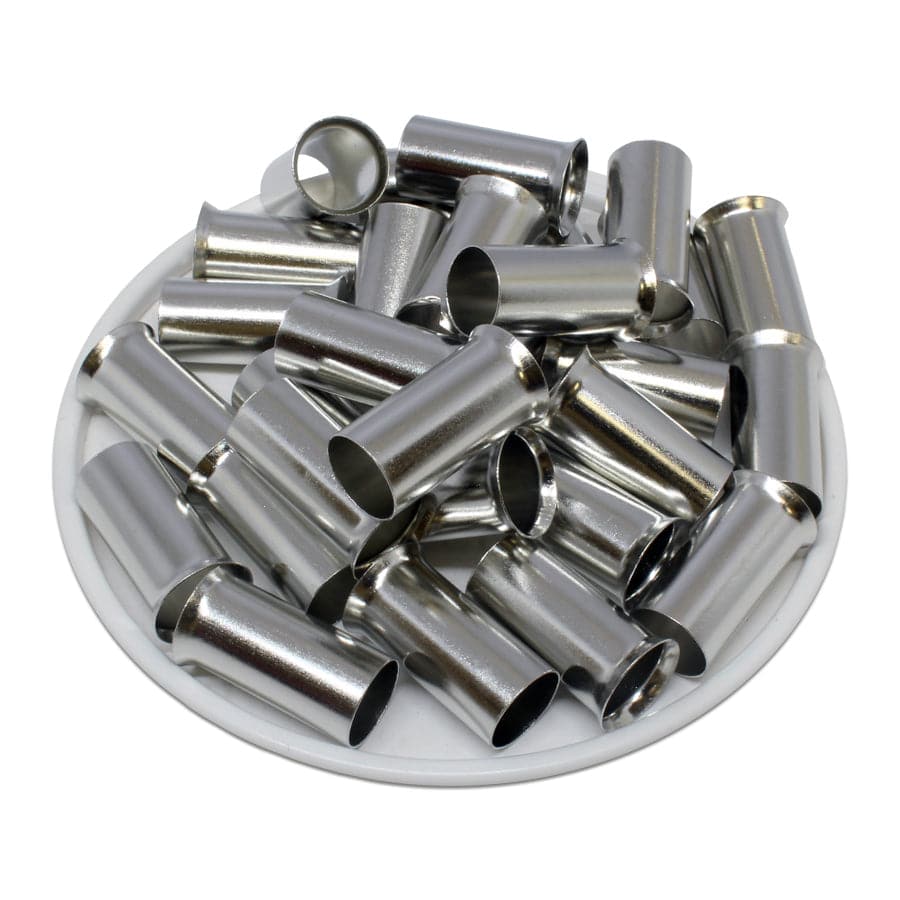

N350018 - 2 AWG (18mm Pin) Non Insulated Ferrules
Precio original
$8.84
-
Precio original
$8.84
Precio original
$8.84
$8.84
-
$8.84
Precio actual
$8.84
SKU N350018
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 2AWG (35.00mm2) |
| Material: | Tin-Plated Copper |
| L: | 18mm (0.71") |
| D: | 8.7mm (0.34") |
| D1: | 8.3mm (0.33") |
| D2: | 10.2mm (0.40") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 170A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:ABB: XUSG01999
Altech Corp: 2396.0
American Electrical: 1218135
Cembre: KE35018ST
Crimp Supply: 13A12014
Eclipse: 701-076
Greenlee: 79/18VZ
ITC: 035.018
McMaster-Carr: 9681K75 9681K134
Panduit: F86-18-C
Phoenix Contact: 3200399
Thomas Betts: F9034
Weidmuller: 368900000
Weland: 06.600.5027.0
ZF: V3AE9082
Documents
Click to view product spec sheet:
