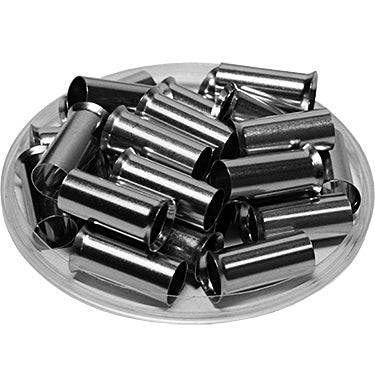

N350020 - 2 AWG (20mm Pin) Non Insulated Ferrules

Precio original $9.96 - Precio original $9.96
Precio original
$9.96 - $9.96
Precio actual $9.96
SKU N350020
en stock, listo para ser enviado
Piece Quantity: 100 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 2AWG (35.00mm2)
Material: Tin-Plated Copper
L: 20mm (0.78")
D: 8.7mm (0.34")
D1: 8.3mm (0.33")
D2: 10.2mm (0.40")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 170A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:

Cross References

Cross References:

ABB: XUSG01999
Altech Corp: 2396.0
American Electrical: 1218135
Burndy Hubbell: 10097802 YF0220UI D-60655-05
Crimp Supply: 13A12014
Eclipse: 701-076
Greenlee: 79/18VZ
ITC: 035.018
McMaster-Carr: 9681K75 9681K134
Panduit: F86-18-C
Phoenix Contact: F86-18-C
Thomas Betts: F9034
Weidmuller: 368900000
Weland: 06.600.5027.0
ZF: 06.600.5027.0
