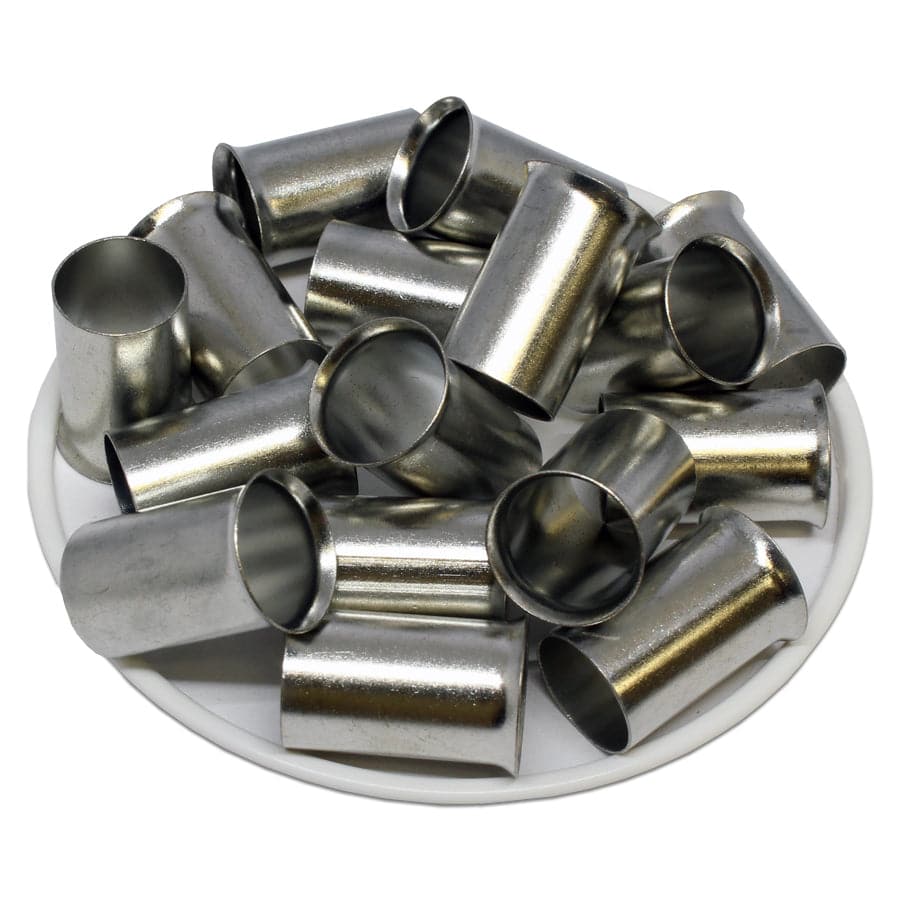

N560020 - 1/0 AWG (20mm Pin) Non Insulated Ferrules
Precio original
$0.00
-
Precio original
$15.99
Precio original
$15.99
$0.00
-
$15.99
Precio actual
$15.99
SKU N560020
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 1/0 AWG |
| L1: | 20mm (0.79") |
| D: | 12mm (0.47") |
| D1: | 11.4mm (0.45") |
| D2: | 14mm (0.55") |
| Material: | Tin Plated Copper |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 230A |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
