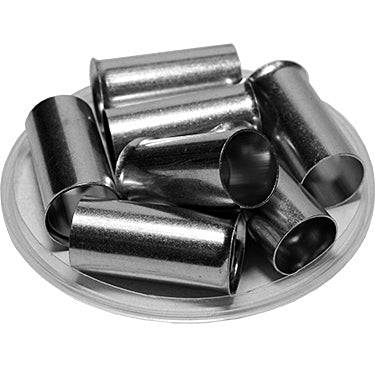

N560030 - 1/0 AWG (30mm Pin) Non Insulated Ferrules

Precio original $0.00 - Precio original $21.75
Precio original
$21.75
$0.00 - $21.75
Precio actual $21.75
SKU N560030
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
Piece Quantity: 50 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 1/0 AWG
L1: 30mm (1.18")
D: 12mm (0.47")
D1: 11.4mm (0.45")
D2: 14mm (0.55")
Material: Tin Plated Copper
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: Up to 2000V
Max Electrical Current: 230A

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
