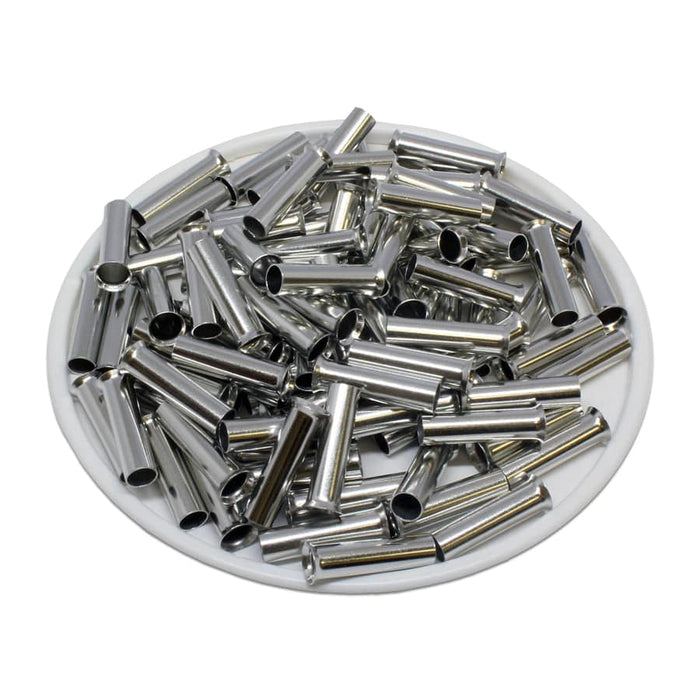

N60015 - 10 AWG (15mm Pin) Non Insulated Ferrules

Precio original $7.64 - Precio original $7.64
Precio original
$7.64 - $7.64
Precio actual $7.64
SKU N60015
en stock, listo para ser enviado
Piece Quantity: 250 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 10 AWG (6.00mm²)
Material: Tin-Plated Copper
L1: 15mm (0.59")
D: 3.7mm (0.14")
D1: 3.3mm (0.13")
D2: 4.7mm (0.18")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 50A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:

Cross References

Cross References:

ABB: 30458322
Altech Corp: 2388.0
American Electrical: 2388.0
Bizlink: TEMP-150065616
Burndy Hubbell: 10097786 YF1015UI
Crimp Supply: 13A12010
Eclipse: 701-062
Greenlee: 75/12VZ
Panduit: F82-12-M
Thomas Betts: F9020
Weidmuller: 124700000
ZF: V3AE9068
