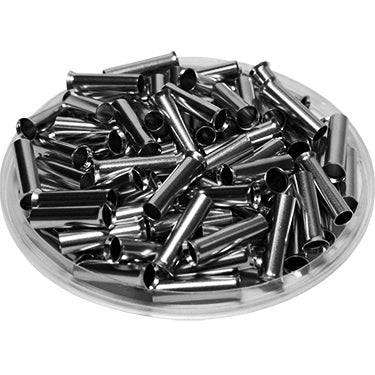

N60018 - 10 AWG (18mm Pin) Non Insulated Ferrules

Precio original $9.32 - Precio original $9.32
Precio original
$9.32 - $9.32
Precio actual $9.32
SKU N60018
en stock, listo para ser enviado
Piece Quantity: 250 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 10AWG (6.00mm2)
Material: Tin-Plated Copper
L1: 18mm (0.71")
D: 3.7mm (0.14")
D1: 3.3mm (0.13")
D2: 4.7mm (0.18")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 50A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:

Cross References

Cross References:

ABB: XUSG01979
Burndy Hubbell: 10097787 YF1018UI
Eclipse: 701-063
Greenlee: 75/18VZ
ITC: 006.018
McMaster-Carr: 9681K69 9681K33
Panduit: F82-18-M
Thomas Betts: F9021
Weidmuller: 9004130000
ZF: V3AE9069


Click to view product spec sheet:
