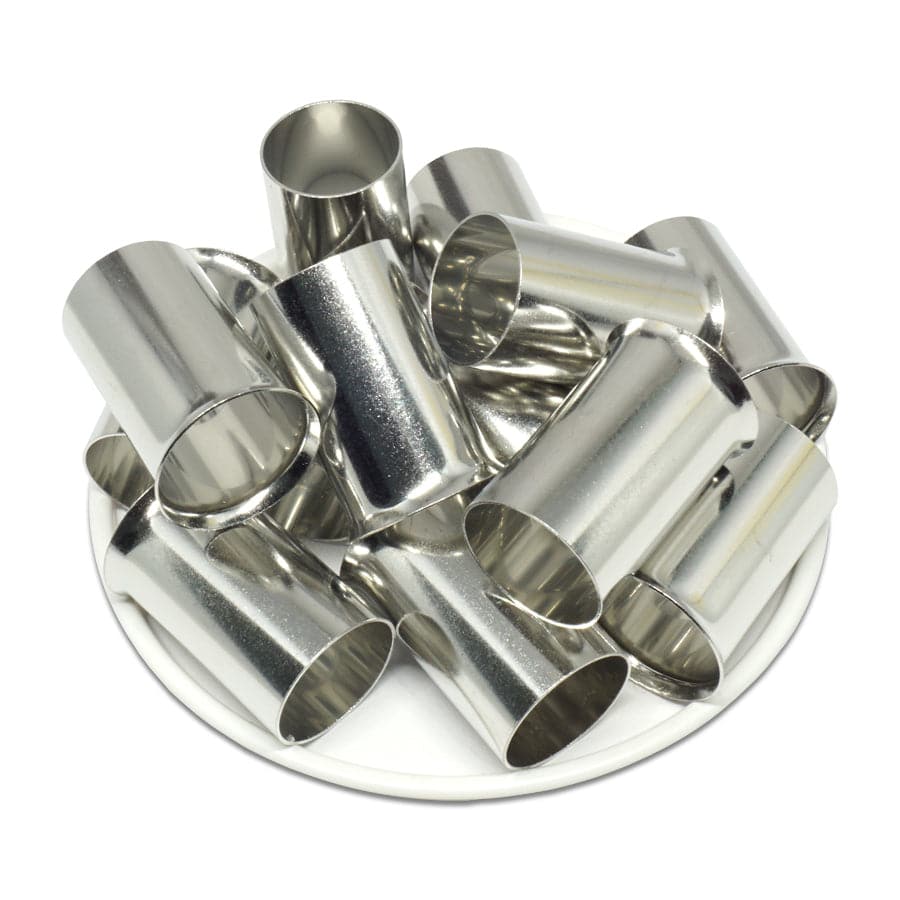

N950025 - 3/0 AWG (25mm Pin) Non Insulated Ferrules
Precio original
$26.30
-
Precio original
$26.30
Precio original
$26.30
$26.30
-
$26.30
Precio actual
$26.30
SKU N950025
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB:XUSG02013
American Electrical:1225195
Burndy Hubbell: 10097812 YF3/025UI
Crimp Supply:13A12017
Elecdirect:FERN-3/0-25L
Greenlee:82/25VZ
McMaster-Carr:9681K78 9681K137
Panduit: F90-25-L
Thomas Betts:F9042
Weidmuller:9004250000
ZF:V3AE9091
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 3/0 AWG |
| L1: | 25mm (0.98") |
| D: | 15.2mm (0.6") |
| D1: | 14.5mm (0.57") |
| D2: | 17.3mm (0.68") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 200A |
Product Drawing:
Cross References
Cross Reference Parts:ABB:XUSG02013
American Electrical:1225195
Burndy Hubbell: 10097812 YF3/025UI
Crimp Supply:13A12017
Elecdirect:FERN-3/0-25L
Greenlee:82/25VZ
McMaster-Carr:9681K78 9681K137
Panduit: F90-25-L
Thomas Betts:F9042
Weidmuller:9004250000
ZF:V3AE9091
Documents
Click to view product spec sheet:
