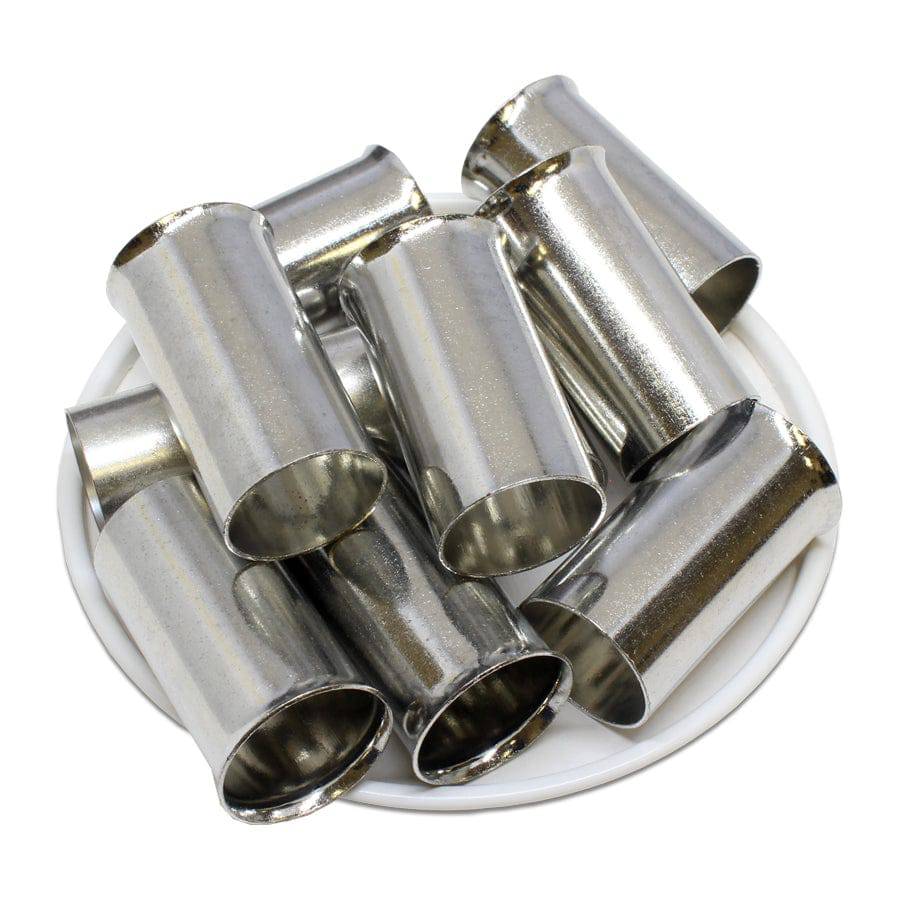

N950030 - 3/0 AWG (30mm Pin) Non Insulated Ferrules
Precio original
$30.02
-
Precio original
$30.02
Precio original
$30.02
$30.02
-
$30.02
Precio actual
$30.02
SKU N950030
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUSG02014
American Electrical: 1230195
Burndy Hubbell: 10097813 YF3/030UI
Greenlee: 82/30VZ
Thomas Betts: F9043
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 3/0 AWG |
| L1: | 30mm (1.18") |
| D: | 15.2mm (0.6") |
| D1: | 14.5mm (0.57") |
| D2: | 17.3mm (0.68") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 200A |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUSG02014
American Electrical: 1230195
Burndy Hubbell: 10097813 YF3/030UI
Greenlee: 82/30VZ
Thomas Betts: F9043
Documents
Click to view product spec sheet:
