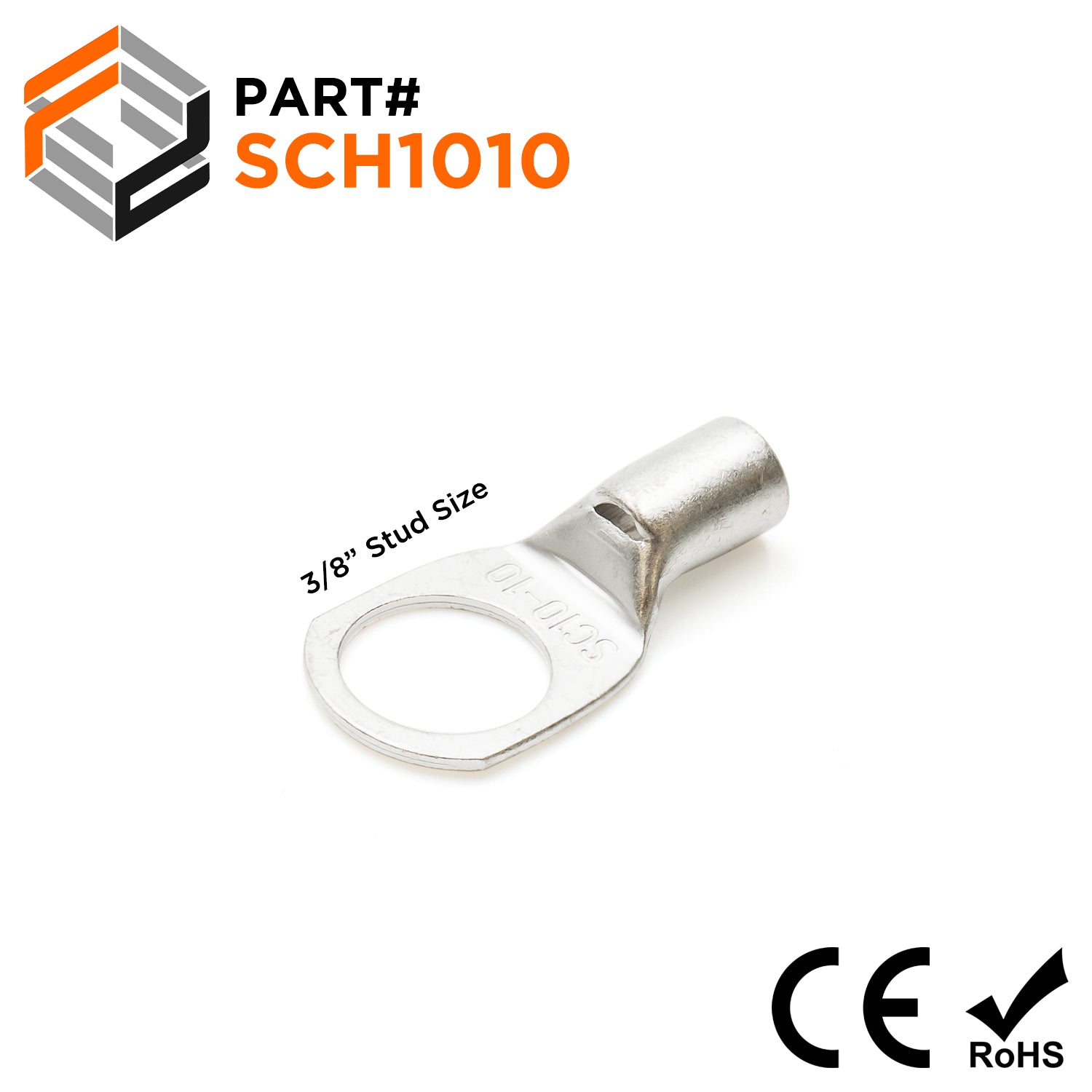

SCH1010 - Non Insulated Tubular Ring Lug, 8 AWG, 3/8" Stud, 50 Pieces
Precio original
$9.68
-
Precio original
$9.68
Precio original
$9.68
$9.68
-
$9.68
Precio actual
$9.68
SKU SCH1010
Quantity: 50 Pieces
Disponibilidad:
en stock, listo para ser enviado

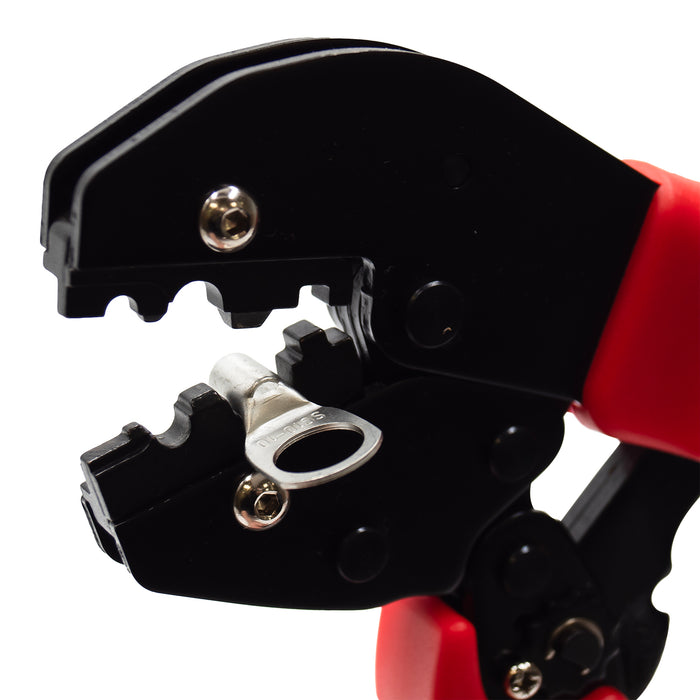

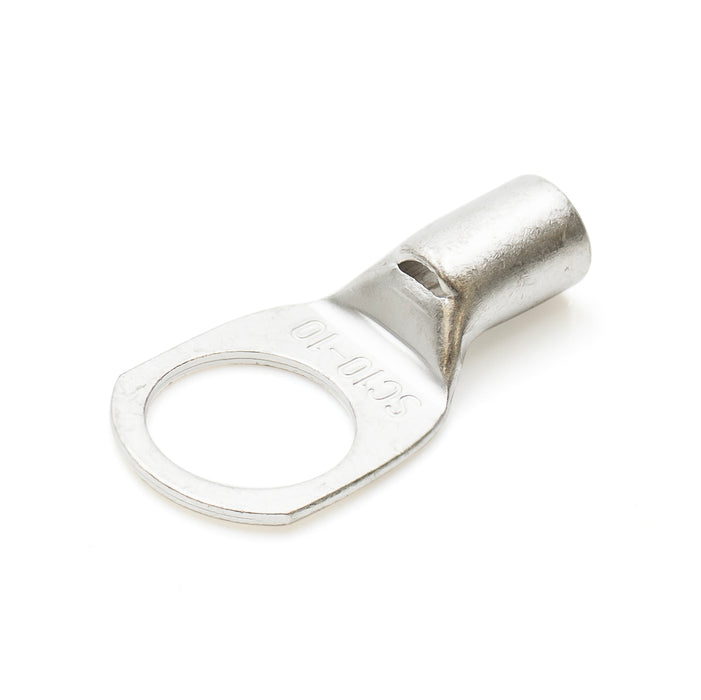

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | 3/8" Stud |
| F: | 9.0mm (0.35") |
| W: | 13.2mm (0.52") |
| L: | 26.6mm (1.04") |
| D: | 6.3mm (0.25") |
| D1: | 4.5mm (0.18") |
| D2: | 10.3mm (0.405") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 75°C |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 50 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
