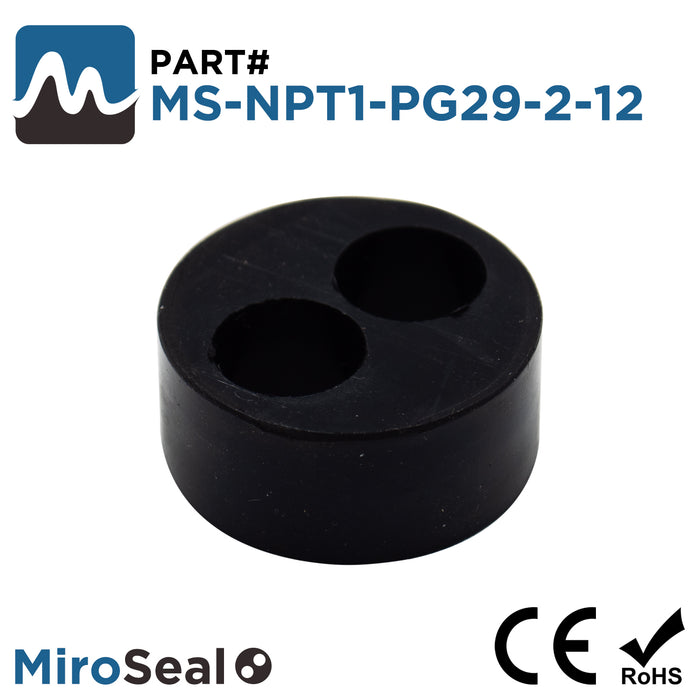

Multi Hole Seals for Cable Glands, Fits: NPT1", PG29, M32, 2 Holes (12mm) - NPT1-PG29-2-12
Precio original
$0.68
-
Precio original
$0.68
Precio original
$0.68
$0.68
-
$0.68
Precio actual
$0.68
SKU NPT1-PG29-2-12
Disponibilidad:
en stock, listo para ser enviado
Multi-Hole seal inserts are designed to allow multiple conductors through one cable gland. The gland's internal rubber seal must be first removed in order to insert any multi-hole seal.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | NPT1", PG29, M32 |
| Holes: | 2 Holes |
| D: | 12mm (0.47") |
| L: | 13.2mm (0.51") |
| W: | 30mm (1.18") |
| Seal Material: | NBR (Nitrile Rubber) |
| Ingress Protection: | IP68 |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
