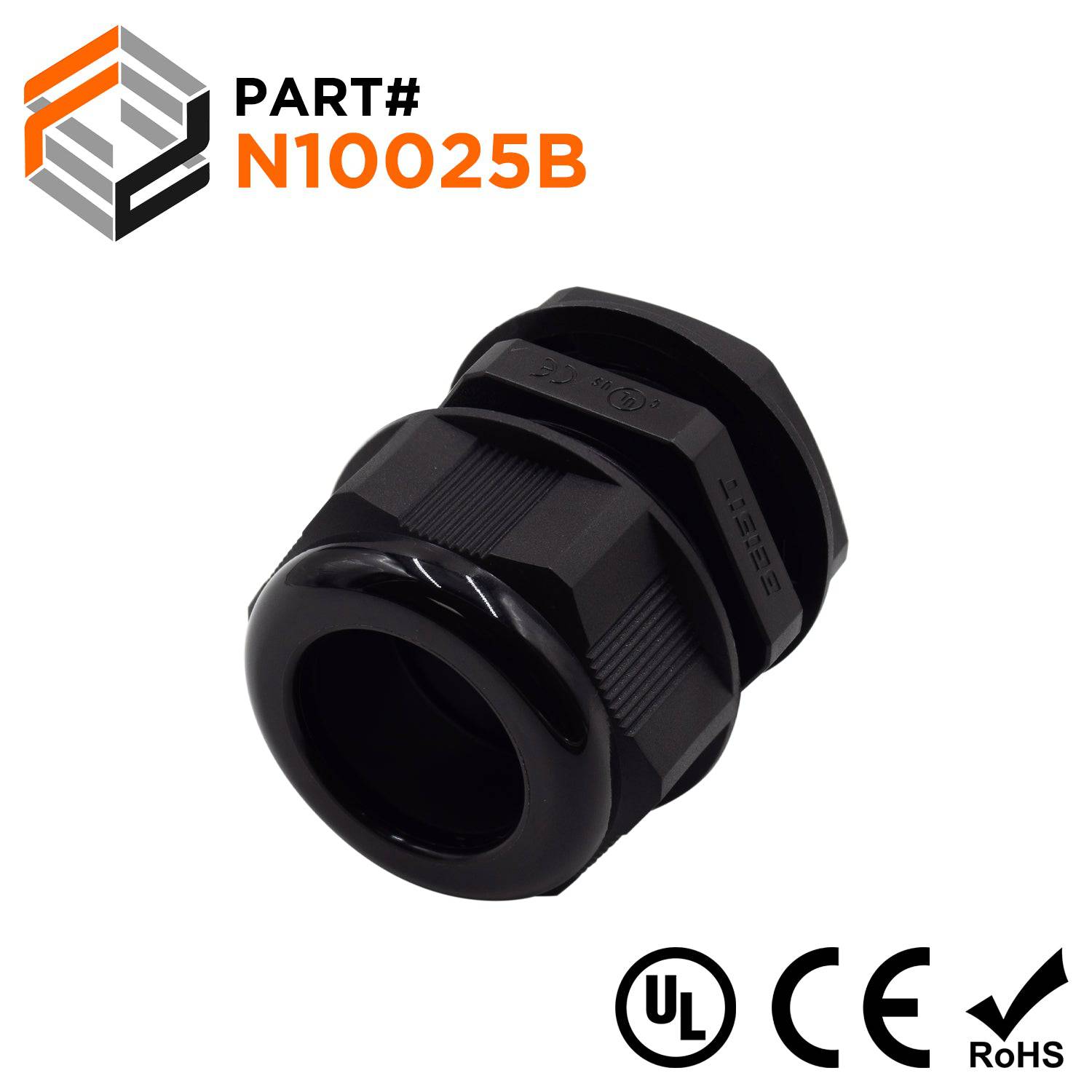

1" NPT Thread Nylon Cable Gland, Black, Range: 11/16" to 1", UL Recognized, IP68 - NPT10025B

Precio original $2.26 - Precio original $2.26
Precio original
$2.26
$2.26 - $2.26
Precio actual $2.26
SKU NPT10025B
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 1 Piece

NYLON CABLE GLANDS: NPT THREAD

NPT (National Pipe Thread) cable glands are useful when creating water-tight pass-throughs for cables. They protect and secure cables through their internal seals. Ferrules Direct offers a wide range of NPT sizes in a variety of materials and colors. These glands are easy to use and built to handle tough conditions.

  • Lock-nut Included
  • Inner Gland Cable Seal Included
  • O-Ring Included ✓
  • UL Recognized ✓
  • IP68 Rating ✓

Formerly sold as part #: N10025B.

DIMENSIONS & FEATURES:

    Thread Size: NPT 1"
    Cable Range: 11/16" to 1" (18-25mm)
    Color: Black
    Material: Nylon 6/6 (Polyamide)
    C1: 33mm (1.30")
    C2: 25.9mm (1.02")
    D2: 25.3mm (0.99")
    B1: 25.3mm (0.99")
    L1: 19.2mm (0.76")
    L2: 26.3mm (1.04")
    L3: 23mm (0.91")
    Flammability Rating: UL 94V-2
    Ingress Protection: IP68
    Hermetic Seal: NBR (Nitrile Rubber)
    O-Ring: EPDM
    Working Temperature: -40°F to 221°F (-40°C to 105°C)
    UL Recognized: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:

    Additional Information:

    A cable gland (more often known in the U.S. as a cord grip, cable strain relief, cable connector or cable fitting) is a device designed to attach and secure the end of an electrical cable to the equipment. A cable gland provides strain-relief and connects by a means suitable for the type and description of cable for which it is designed—including provision for making electrical connection to the armor or braid and lead or aluminum sheath of the cable, if any. Cable glands may also be used for sealing cables passing through bulkheads or gland plates. Cable glands are mostly used for cables with diameters between 1 mm and 75 mm.


    Cross References

    Cross Reference Parts:
    None

    Documents

    Click to view product spec sheet:
