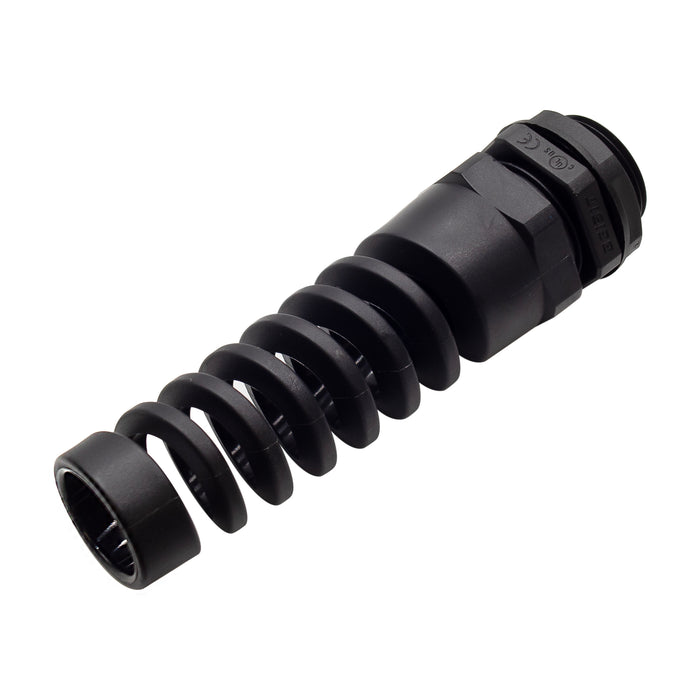

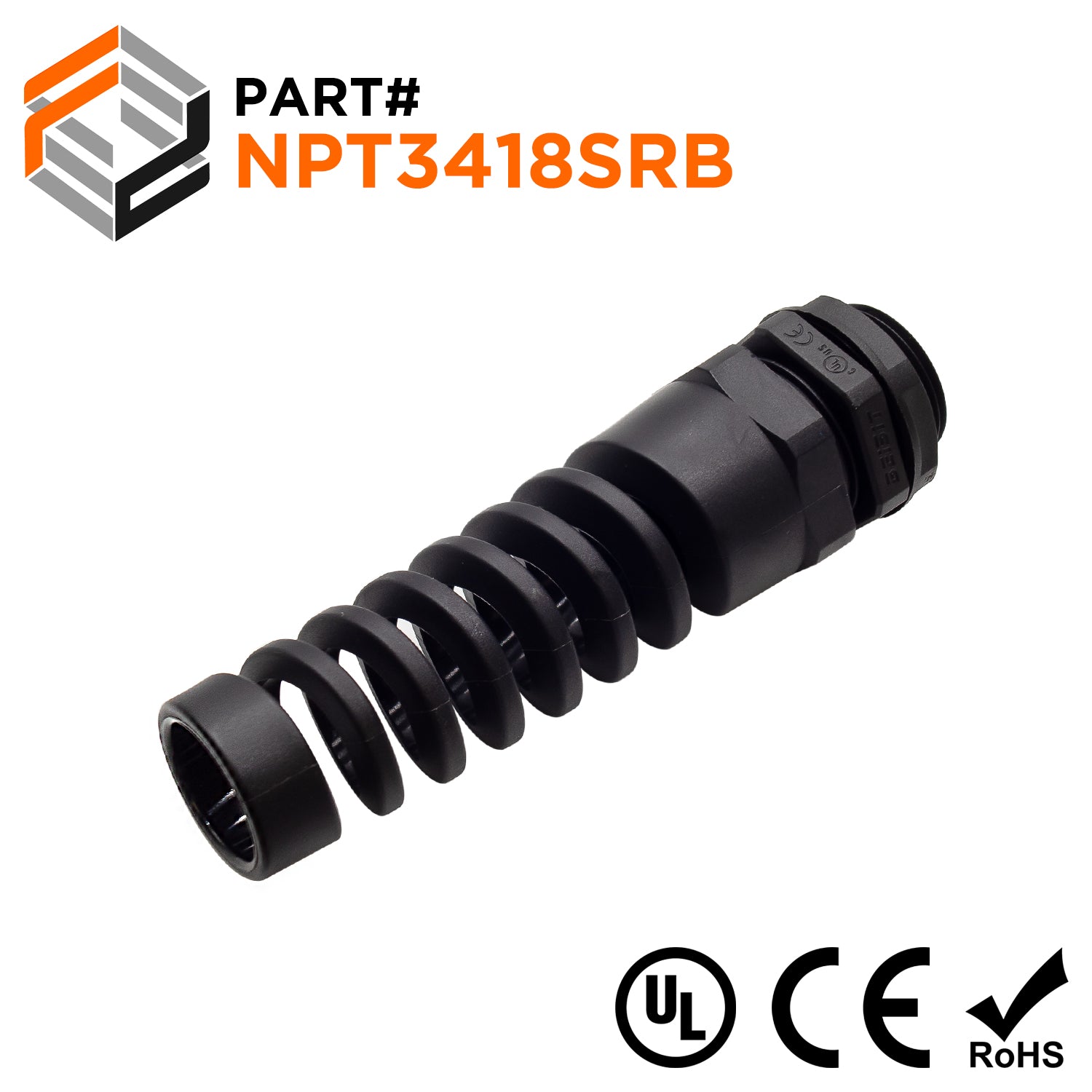

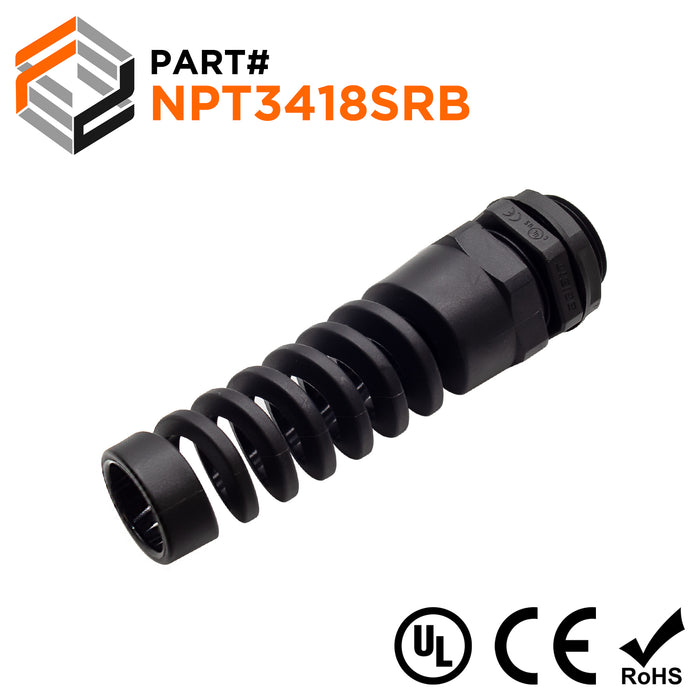

3/4" NPT Thread Nylon Flexible Cable Gland, Black, Range: 1/2" to 11/16", UL Recognized, IP68 - NPT3418SRB

Precio original $2.36 - Precio original $2.36
Precio original
$2.36
$2.36 - $2.36
Precio actual $2.36
SKU NPT3418SRB
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 1 Piece

FLEXIBLE NYLON CABLE GLANDS: NPT THREAD (STRAIN RELIEF)

NPT (National Pipe Thread) cable glands are useful when creating water-tight pass-throughs for cables. They protect and secure cables through their internal seals. Ferrules Direct offers a wide range of NPT sizes in a variety of materials and colors. These glands are easy to use and built to handle tough conditions.

  • Lock Nut Included
  • Inner Gland Cable Seal Included
  • O-Ring Included ✓
  • UL Recognized ✓
  • IP68 Rating ✓

Formerly sold as part #: NPT34SR.

DIMENSIONS & FEATURES:

Thread Size: NPT 3/4"
Cable Range: 1/2" to 11/16" (13-18mm)
Color: Black
Material: Nylon 6/6 (Polyamide)
D1: 26.3mm (1.03")
D2: 18.5mm (0.73")
B1: 18.4mm (0.72")
L1: 14.5mm (0.57")
L2: 29.2mm (1.15")
L3: 111.2mm (4.38")
Flammability Rating: UL 94V-2
Ingress Protection: IP68
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°F to 221°F (-40°C to 105°C)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



DRAWING:


DOCUMENT FILE:






COMPARE TO THESE PARTS:
