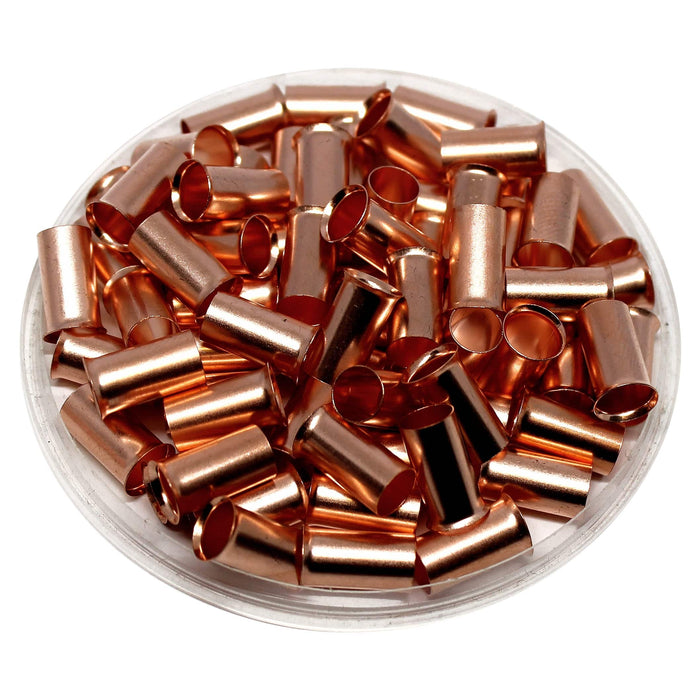

NT160012 - 6 AWG (12mm Pin) High Temperature Ferrules
Precio original
$14.49
-
Precio original
$14.49
Precio original
$14.49
$14.49
-
$14.49
Precio actual
$14.49
SKU NT160012
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None:
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 6 AWG |
| Material: | Copper |
| L1: | 12mm (0.47") |
| D: | 6.4mm (0.25") |
| D1: | 5.8mm (0.23") |
| D2: | 7.8mm (0.31") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 95A |
| Max Operating Temperature: | 1984oF (1085oC) |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
