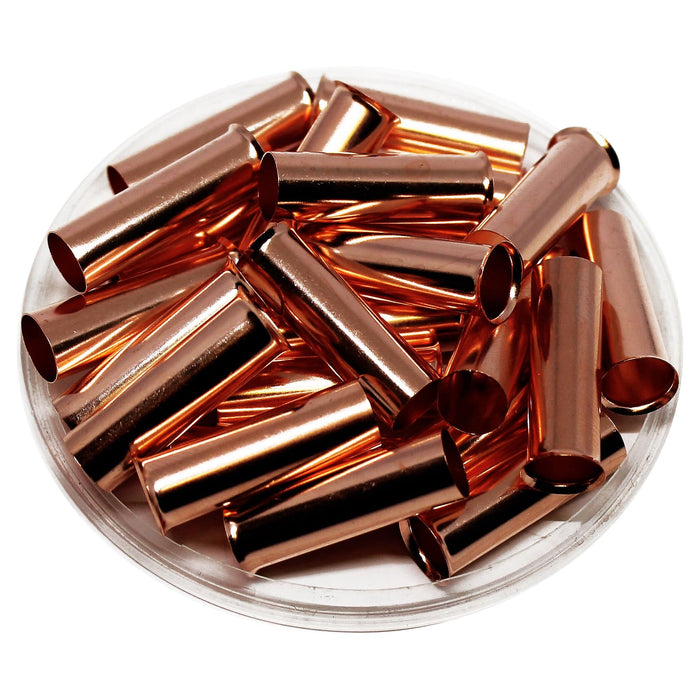

NT250022 - 4 AWG (22mm Pin) High Temperature Ferrules
Precio original
$16.45
-
Precio original
$16.45
Precio original
$16.45
$16.45
-
$16.45
Precio actual
$16.45
SKU NT250022
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None:
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | 4 AWG |
Material: | Copper |
L1: | 22mm (0.86") |
D: | 7.8mm (0.30") |
D1: | 7.2mm (0.28") |
D2: | 9.1mm (0.35") |
Max Electrical Rating: | Up to 2000V |
Max Electrical Current: | 125A |
Max Operating Temperature: | 1984oF (1085oC) |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
