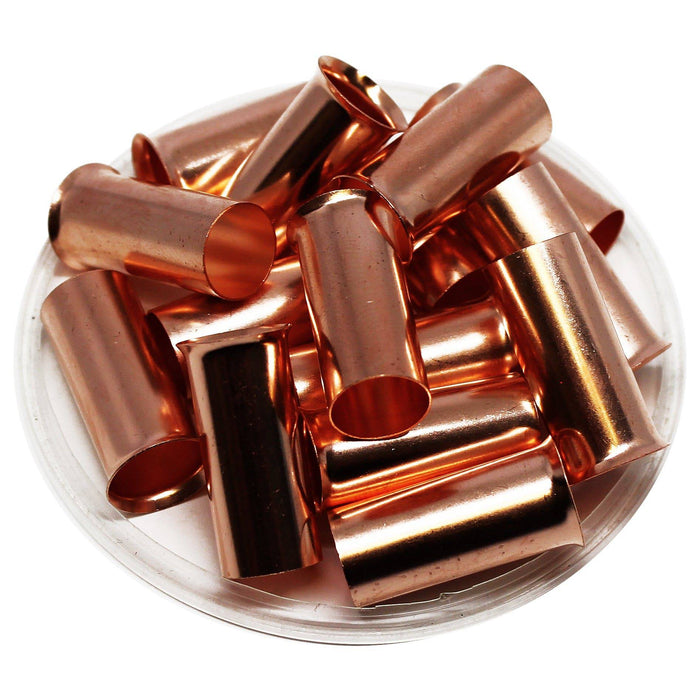

NT500030 - 1-1/0 AWG (30mm Pin) High Temperature Ferrules
Precio original
$26.22
-
Precio original
$26.22
Precio original
$26.22
$26.22
-
$26.22
Precio actual
$26.22
SKU NT500030
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None:
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | 1-1/0 AWG |
Material: | Copper |
L1: | 30mm (1.18") |
D: | 10.8mm (0.42") |
D1: | 10.2mm (0.40") |
D2: | 12.7mm (0.50") |
Max Electrical Rating: | 2000V |
Max Electrical Current: | 195A |
Max Operating Temperature: | 1984oF (1085oC) |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
