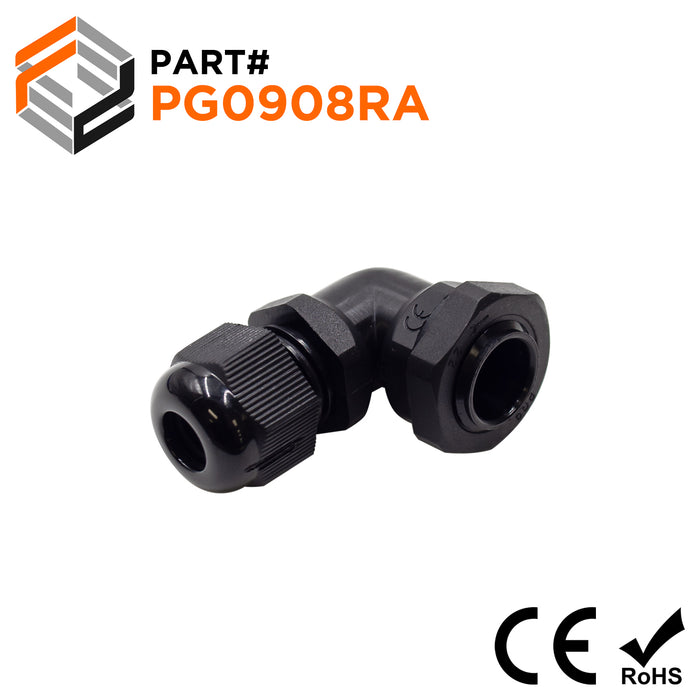

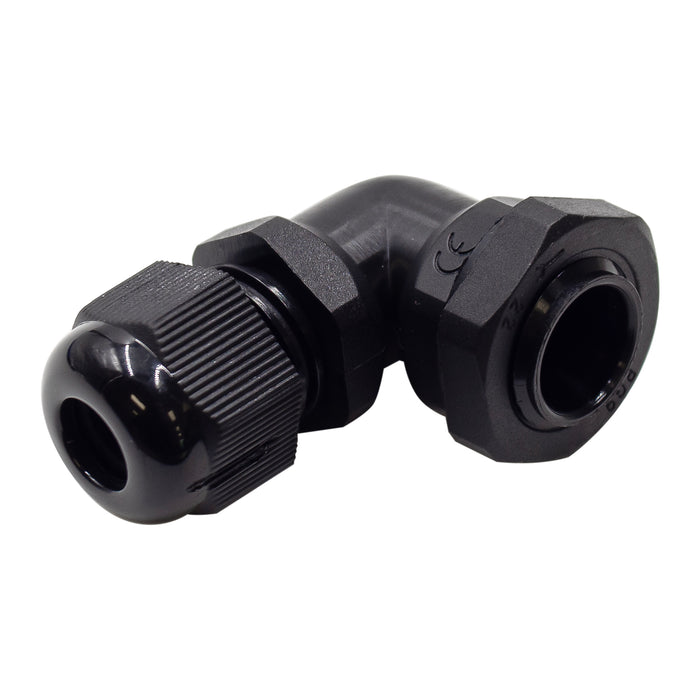

PG9 Right Angle Cable Gland - 4-8mm - Black - PG0908RA

Precio original $1.32 - Precio original $1.32
Precio original
$1.32
$1.32 - $1.32
Precio actual $1.32
SKU PG0908RA
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 1 Piece
Right Angle PG Thread Black Cable Gland (Includes both locknut and washer)

Dimensions & Features:

Thread Size: PG9
Cable Range: 4-8mm
Color: Black
C1: 15.3mm (0.60")
C2: 14mm (0.55")
D2: 11mm (0.43")
B1: 8.9mm (0.36")
H: 24.5mm (0.96")
L: 42mm (1.65")
L1: 7.7mm (0.30")
L2: 10.2mm (0.40")
L3: 14.8mm (0.58")
Material: UL Approved 94UV-2
Flammability: PA (Nylon), UL 94
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!
