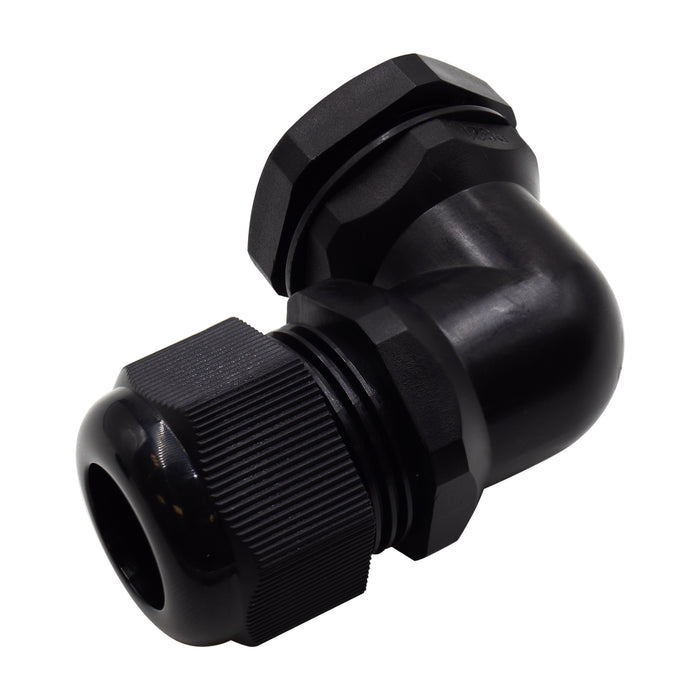

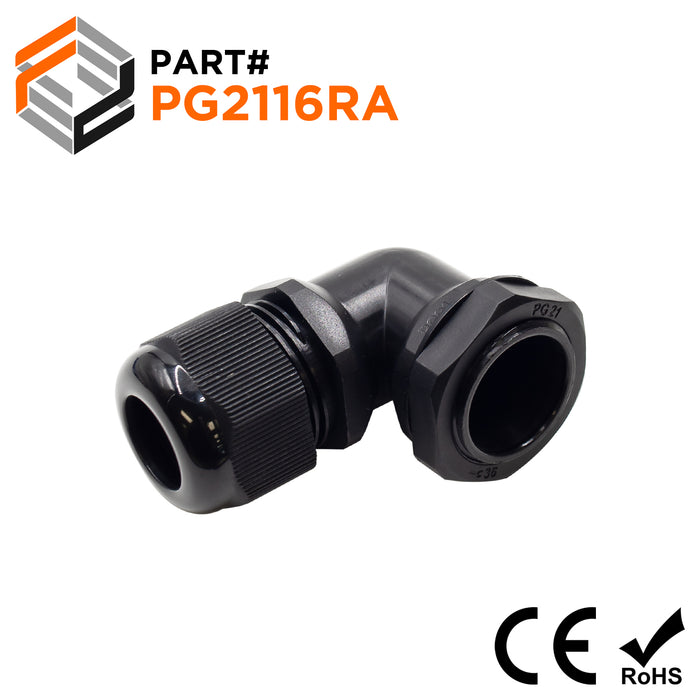

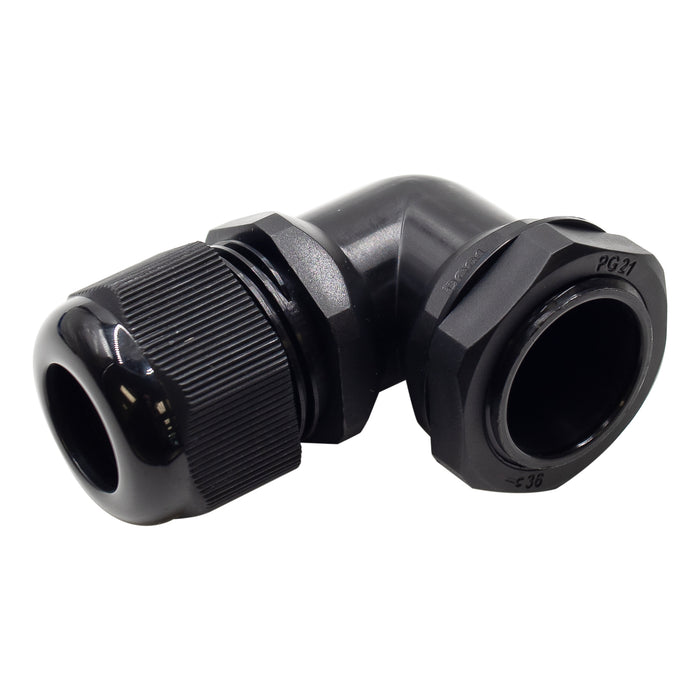

PG21 Right Angle Cable Gland, Black, IP68, 9-16mm Range, UL Recognized - PG2116RA

Precio original $2.91 - Precio original $2.91
Precio original
$2.91
$2.91 - $2.91
Precio actual $2.91
SKU PG2116RA
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 1 Piece

NYLON CABLE GLANDS: PG THREAD

PG cable glands are useful when creating water-tight pass-throughs for cables. They protect and secure cables through their internal seals. Ferrules Direct offers a wide range of PG sizes in a variety of materials and colors. These glands are easy to use and built to handle tough conditions.

The PG stands for Panzer-Gewinde, which is a German style thread, compared to the NPT (National Pipe Thread) that is more commonly used in the United States. The PG thread has a smaller depth, but a larger flank angle. This makes it have a wider pitch along with a straight thread. For more information on thread differences, please see our blog post:

  • Lock-nut Included
  • Inner Gland Seal Included
  • O-Ring/Washer Included ✓
  • PG21
  • UL Recognized ✓
  • IP68 Rating ✓
DIMENSIONS & FEATURES:

Thread Size: PG21
Cable Range: 3/8" to 5/8" (9-16mm)
Color: Black
C1: 28.3mm (1.11")
C2: 26.9mm (1.06")
D2: 23.1mm (0.91")
B1: 16.1mm (0.63")
H: 41.2mm (1.62")
L: 66.4mm (2.61")
L1: 10.1mm (0.40")
L2: 14.2mm (0.56")
L3: 22.8mm (0.90")
Material: UL Approved 94UV-2
Flammability: PA (Nylon), UL 94
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
