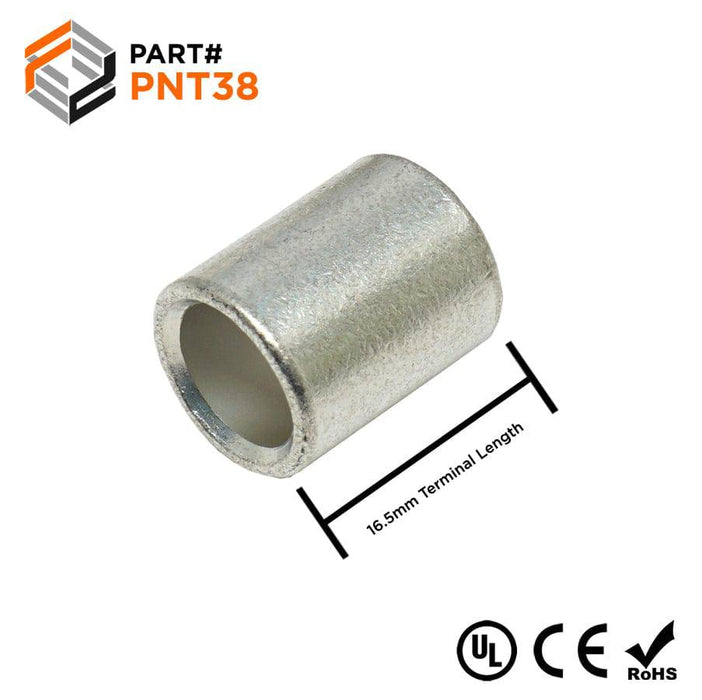

2 AWG Non Insulated Parallel Connectors, 5/8" Length, UL Approved, 25 Pieces - PNT38

Precio original $28.87 - Precio original $28.87
Precio original
$28.87
$28.87 - $28.87
Precio actual $28.87
SKU PNT38
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 25 Pieces

NON INSULATED PARALLEL CONNECTORS

Standard non insulated parallel splice connectors are the most economical among all the butt connectors. Made of seamless copper tubing, these parallel splice connectors offer a higher tensile strength than normal butted seam connectors. Product's tin plating offers excellent corrosion protection.


Dimensions & Features:

Wire Range: 2 AWG
L: 16.5mm (0.65")
D: 13.2mm (0.52")
D1: 9.5mm (0.37")
Wall Thickness: 1.0mm (0.04")
Material: Tin-Plated Copper - Seamless
Configuration: Straight
Max Electrical Current: 170 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

Burndy: YSM4C
Tyco AMP: 34320
