PNT5 - Non Insulated Parallel Connector - 12 AWG to 10 AWG
Precio original
$10.81
-
Precio original
$10.81
Precio original
$10.81
$10.81
-
$10.81
Precio actual
$10.81
SKU PNT5
Disponibilidad:
en stock, listo para ser enviado

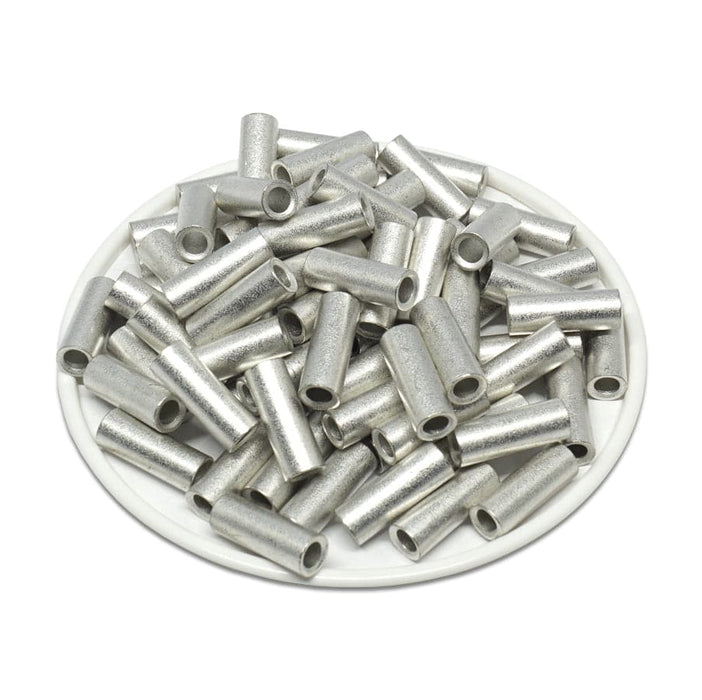

Standard non insulated parallel splice connectors are the most economical among all the butt connectors. Made of seamless copper tubing, these parallel splice connectors offer a higher tensile strength than normal butted seam connectors. Product's tin plating offers excellent corrosion protection.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Range: | 12-10 AWG |

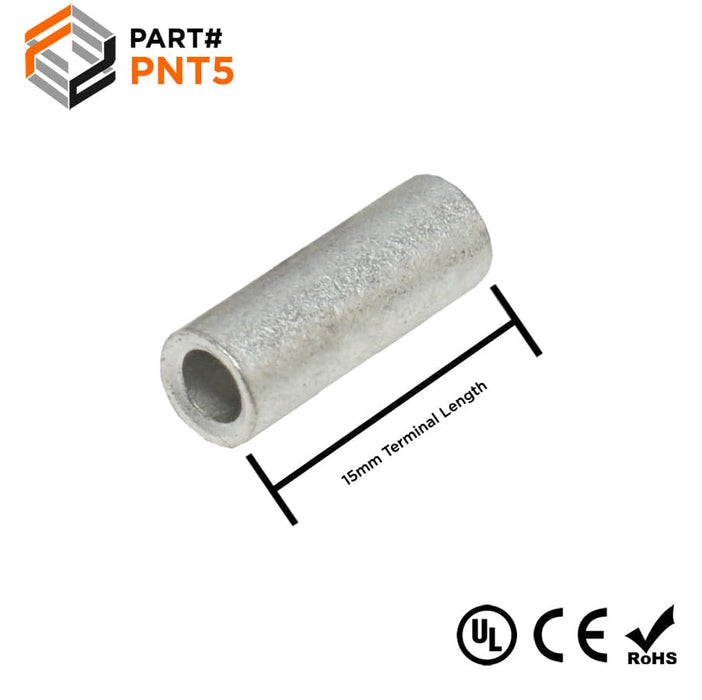

| L: | 15.0mm (0.59") |
| D: | 5.4mm (0.21") |
| D1: | 3.4mm (0.13") |
| Wall Thickness: | 0.8mm (0.03") |
| Material: | Tin-Plated Copper - Seamless |
| Configuration: | Straight |
| Max Electrical Current: | 50 AMP |
| UL Recognized: | Yes |
| CE Cerified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
