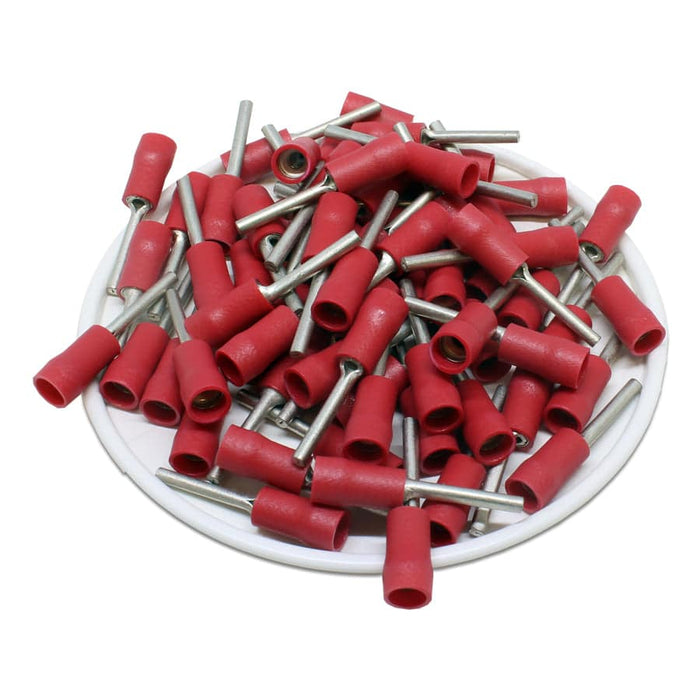

PTD1-14 - Vinyl Insulated Pin Terminals - Double Crimp - 22-16 AWG - Red

Precio original $13.80 - Precio original $13.80
Precio original
$13.80
$13.80 - $13.80
Precio actual $13.80
SKU PTD1-14
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 100 Pieces
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
T: 0.75mm (0.03")
L: 23.8mm (0.94")
F: 14mm (0.55")
E: 10mm (0.39")
W: 1.9mm (0.08")
D: 4mm (0.16")
D1: 1.7mm (0.07")
Terminal Material: Tin-Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Amp Rating: 18A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:
