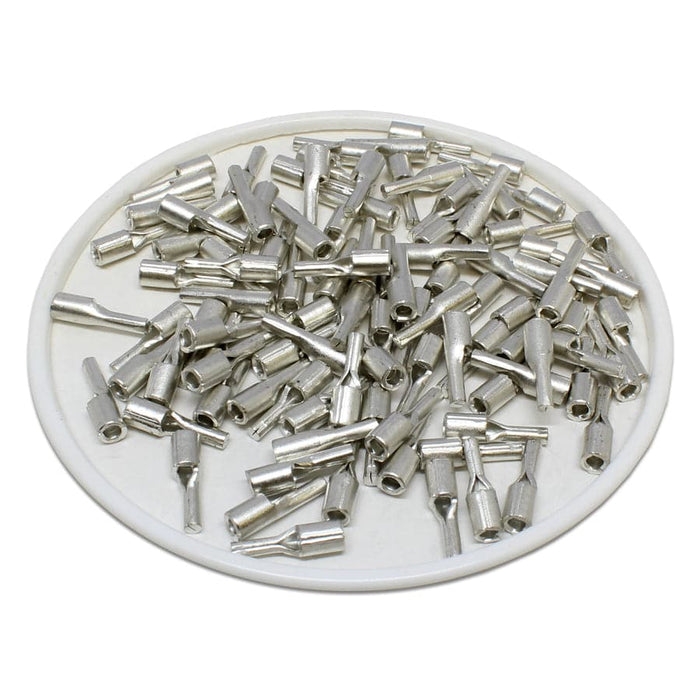

22-16 AWG Non Insulated Pin Terminals, 1/4" Pin, UL Approved, 100 Pieces - PTNB1-7

Precio original $6.79 - Precio original $6.79
Precio original
$6.79
$6.79 - $6.79
Precio actual $6.79
SKU PTNB1-7
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 100 Pieces

NON INSULATED PIN TERMINALS

Pin terminals are used to connect cables and wires to an electrical system. They are commonly used to connect wires to terminal blocks. For standard applications, pin terminals provide quick and easy connections when using of screw or clamp type blocks. However, they can also be used in applications where a slight reduction in wire circumference is needed for tight spaces.


Dimensions & Features:

Wire Size: 22-16 AWG
Seam: Brazed
Pin Length: 1/4"
Material: Tin-Plated Copper
T: 0.8mm (0.03")
L: 11.8mm (0.47")
F: 7.0mm (0.28")
E: 4.8mm (0.19")
W: 1.9mm (0.08")
D: 3.4mm (0.13")
D1: 1.7mm (0.07")
Maxed Electrical Current: 18AMP
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
