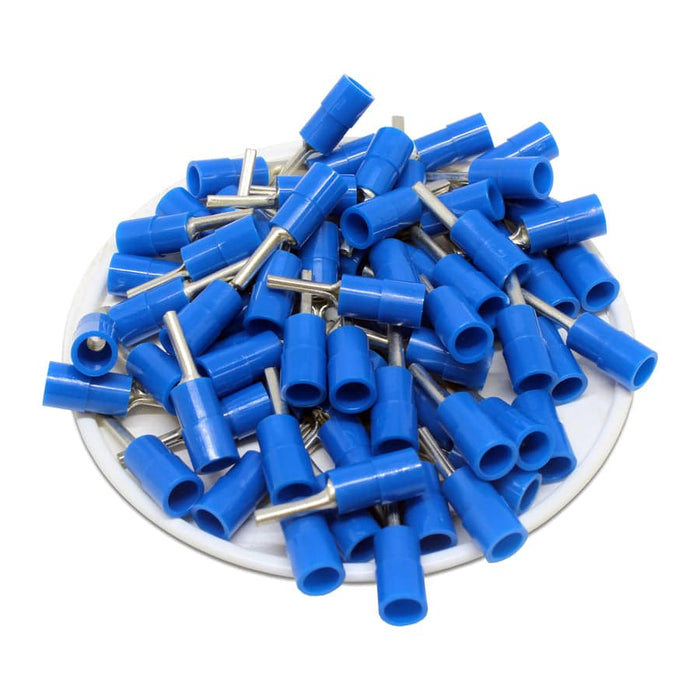

PTNYB2-10 - Nylon Insulated Pin Terminals - 16-14 AWG - Blue
Precio original
$9.27
-
Precio original
$9.27
Precio original
$9.27
$9.27
-
$9.27
Precio actual
$9.27
SKU PTNYB2-10
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| T: | 0.8mm (0.03") |
| L: | 20.8mm (0.78") |
| F: | 10.0mm (0.39") |
| E: | 11mm (0.43") |
| W: | 1.9mm (0.07") |
| D: | 5.2mm (0.21") |
| D1: | 2.3mm (0.09") |
| Max Temperature Rating: | 105oC |
| Max Voltage Rating: | 600 Volts |
| Max Electrical Current: | 30AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
