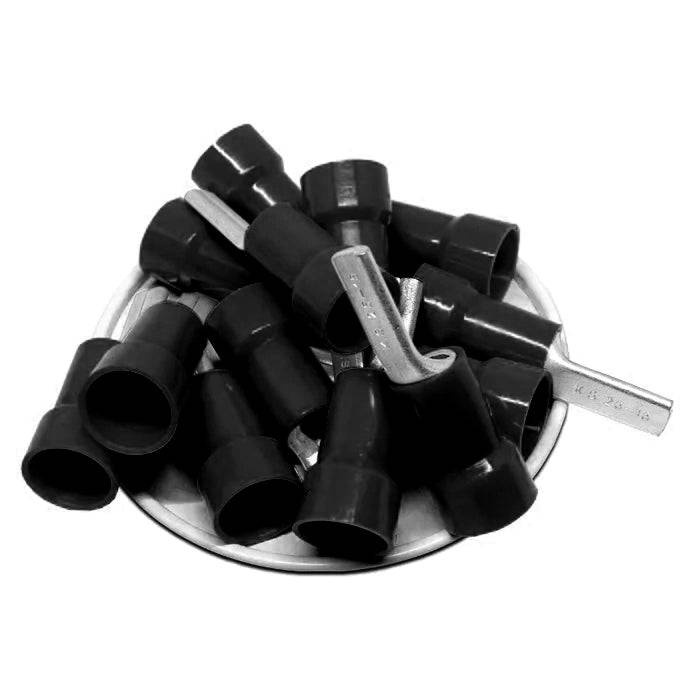

PTNYB25-15B - 4 AWG Nylon Insulated Pin Terminals, 15mm Pin, Black, 25 Pieces
Precio original
$19.46
-
Precio original
$19.46
Precio original
$19.46
$19.46
-
$19.46
Precio actual
$19.46
SKU PTNYB25-15B
Quantity: 25 Pieces
Disponibilidad:
en stock, listo para ser enviado
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 4 AWG |
| Color: | Black |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| T: | 1.2mm (0.04") |
| L: | 44.0mm (1.77") |
| F: | 15.0mm (0.59") |
| E: | 24.2mm (0.95") |
| W: | 6.8mm (0.27") |
| D: | 12.4mm (0.49") |
| D1: | 7mm (0.28") |
| Max Temperature Rating: | 105°C |
| Max Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
