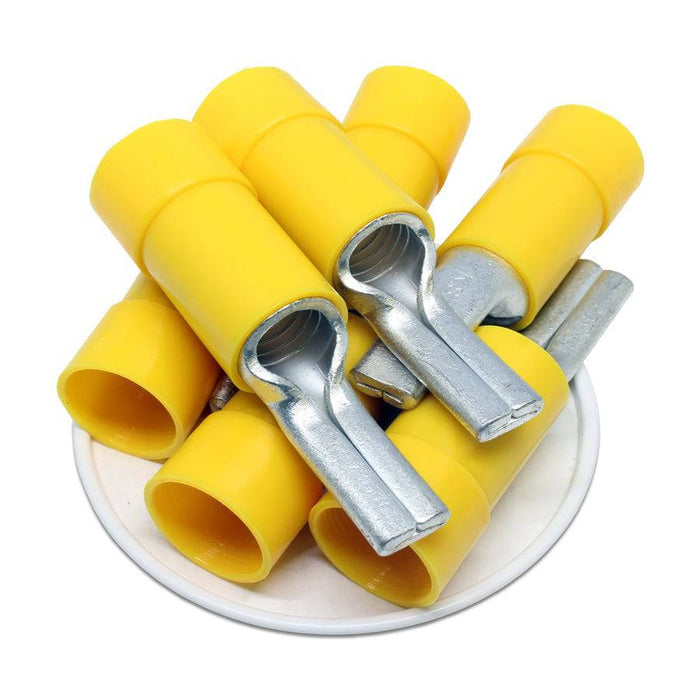

PTNYB70-25 - Nylon Insulated Pin Terminals - 2/0 AWG - Yellow
Precio original
$28.73
-
Precio original
$28.73
Precio original
$28.73
$28.73
-
$28.73
Precio actual
$28.73
SKU PTNYB70-25
Quantity: 5 Pieces
Disponibilidad:
en stock, listo para ser enviado
| PRODUCT DESCRIPTION | |||
|
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire. |
|||
| DIMENSIONS AND FEATURES | |||
| T: | 2mm (0.079") | Wire Range: | 2/O AWG |
| L: | 69mm (2.7") | Color: | Yellow |
| F: | 23.5mm (0.93") | Insulation: | Nylon |
| E: | 38mm (1.5") | Material: | Tin-Plated Copper |
| W: | 11mm (0.43") | Max Temperature Rating: | 105oC |
| D: | 18mm (0.71") | Max Volt Rating: | 600 Volts |
| D1: | 11.4mm (0.45") | UL Recognized: | Yes |
| CE Certified: | Yes | ||
| RoHS Compliant: | Yes | ||
|
TECHNICAL DRAWING |
|||
 |
|||
