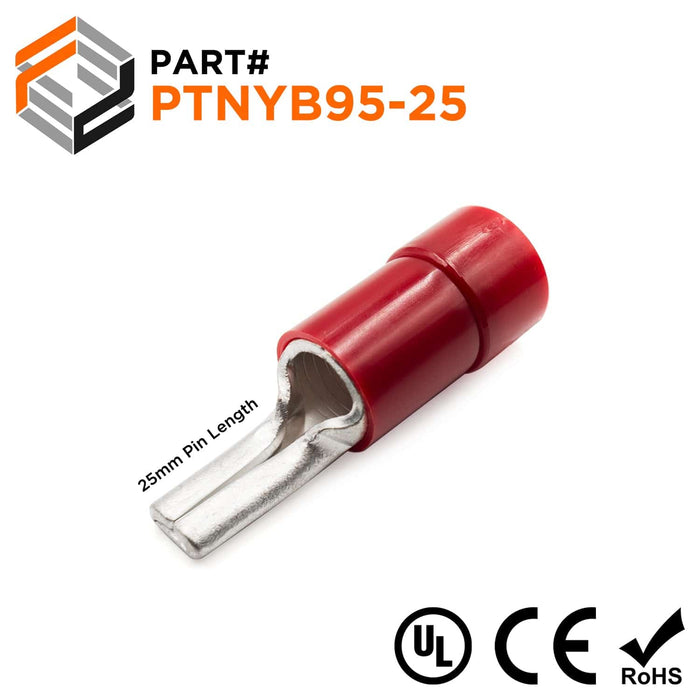

PTNYB95-25 - Nylon Insulated Pin Terminals - 3/0 AWG - Red
Precio original
$21.28
-
Precio original
$21.28
Precio original
$21.28
$21.28
-
$21.28
Precio actual
$21.28
SKU PTNYB95-25
Quantity: 5 Pieces
Disponibilidad:
en stock, listo para ser enviado
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
None
Dimensions & Features:
| Wire Size: | 3/0 AWG |
| Color: | Red |
| T: | 2.5mm (0.098") |
| L: | 71.0mm (2.79") |
| F: | 23.5mm (0.93") |
| E: | 40.0mm (1.57") |
| W: | 12.5mm (0.49") |
| D | 14.5mm (0.571") |
| D1: | 20.7mm (0.82") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105°C) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
