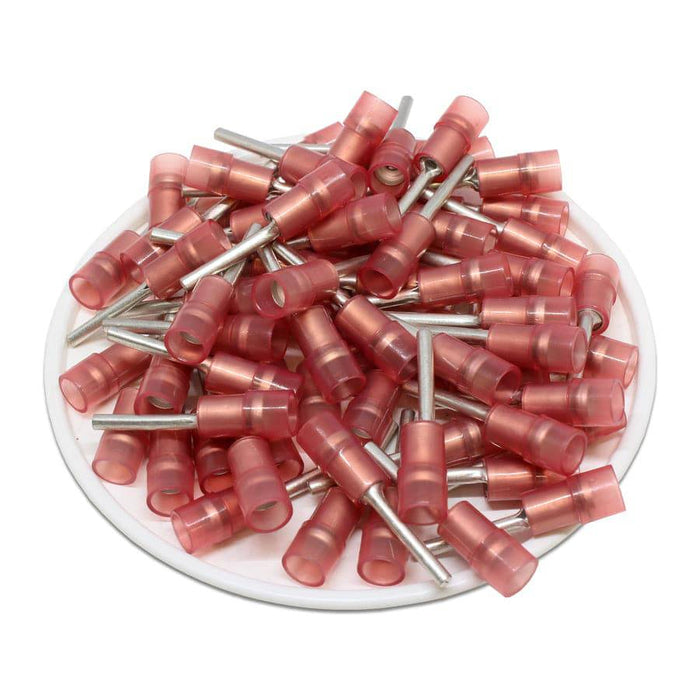

PTNYD1-14 - Nylon Insulated Pin Terminals - 22-16 AWG - Double Crimp

Precio original $14.74 - Precio original $14.74
Precio original
$14.74
$14.74 - $14.74
Precio actual $14.74
SKU PTNYD1-14
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

PRODUCT DESCRIPTION

Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.

DIMENSIONS AND FEATURES
T: 0.75mm (0.13") Wire Range: 22-16 AWG
L: 24.8mm (0.97") Color: Red
F: 14mm (0.55") Insulation: Nylon
E: 11mm (0.43") Material: Tin-Plated Copper
W: 1.9mm (0.075") Max Temperature Rating: 105oC
D: 4.5mm (0.17") Max Volt Rating: 600 Volts
D1: 1.7mm (0.067") Max Electrical Current: 18AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Complinat: Yes

TECHNICAL DRAWING

Cross Reference Parts:

Click to view data sheet
