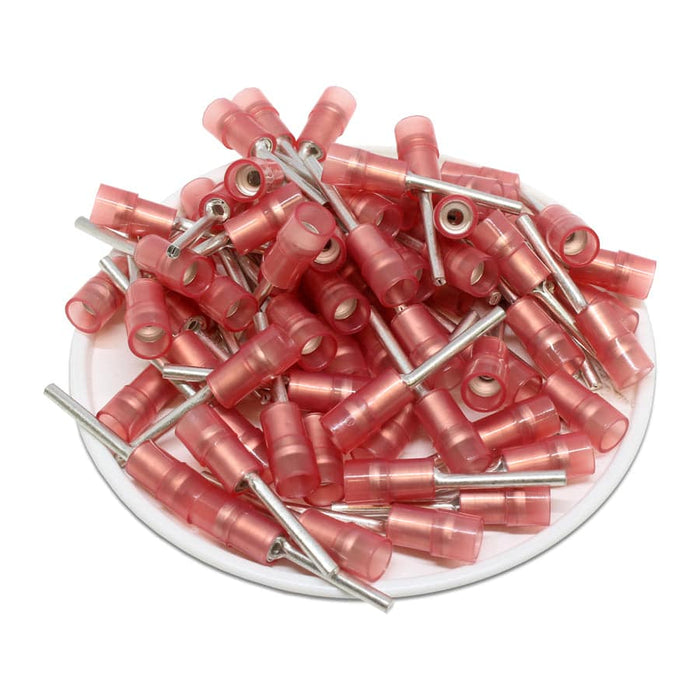

PTNYD1-16 - Nylon Insulated Pin Terminals - 22-16 AWG - Double Crimp
Precio original
$15.30
-
Precio original
$15.30
Precio original
$15.30
$15.30
-
$15.30
Precio actual
$15.30
SKU PTNYD1-16
Disponibilidad:
en stock, listo para ser enviado
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| T: | 0.75mm (0.13") |
| L: | 27mm (1.06") |
| F: | 16mm (0.63") |
| E: | 11mm (0.43") |
| W: | 1.9mm (0.075") |
| D | 4.5mm (0.17") |
| D1: | 1.7mm (0.067") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105°C) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
