PTNYD1-9 - Nylon Insulated Pin Terminals - 22-16 AWG - Double Crimp - Ferrules Direct

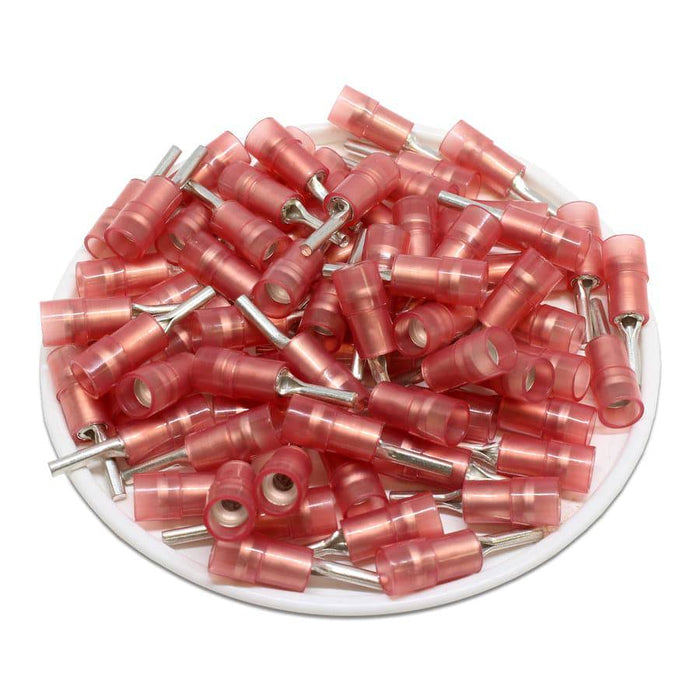

PTNYD1-9 - Nylon Insulated Pin Terminals - 22-16 AWG - Double Crimp

$12.01 - $12.01
$12.01
$12.01 - $12.01
$12.01
SKU PTNYD1-9

Quantity: 100 Pieces

Disponibilidad:
en stock, listo para ser enviado
true

Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.

Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
T: 0.75mm (0.13")
L: 19.8mm (0.64")
F: 9mm (0.354")
E: 11mm (0.43")
W: 1.9mm (0.075")
D 4.5mm (0.17")
D1: 1.7mm (0.067")
Terminal Material: Tin-Plated Copper
Insulation Material: Nylon
Max Electrical Rating: 600 Volts (105°C)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:


Cross References

Cross Reference Parts:
None
