PTNYD2-12 - Nylon Insulated Pin Terminals - 16-14 AWG - Double Crimp - Ferrules Direct

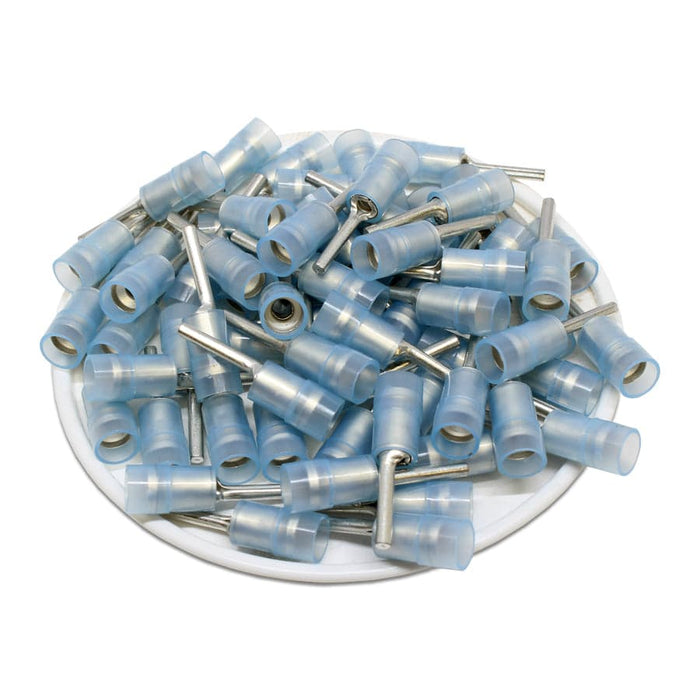

PTNYD2-12 - Nylon Insulated Pin Terminals - 16-14 AWG - Double Crimp

$14.72 - $14.72
$14.72
$14.72 - $14.72
$14.72
SKU PTNYD2-12

Quantity: 100 Pieces

Disponibilidad:
en stock, listo para ser enviado
true
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.

Dimensions & Features:

Wire Range: 16-14 AWG
Color: Blue
L: 22.8mm (0.898")
F: 12.0mm (0.472")
E: 11.0mm (0.433")
W: 1.9mm (0.075")
D: 5.2mm (0.205")
D1: 2.3mm (0.091")
T: 0.8mm (0.031")
Terminal Material: Copper
Surface Treatment: Tin Plated
Electrical Rating: 105°C - 600 Volts
Current Rating: 30A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None
