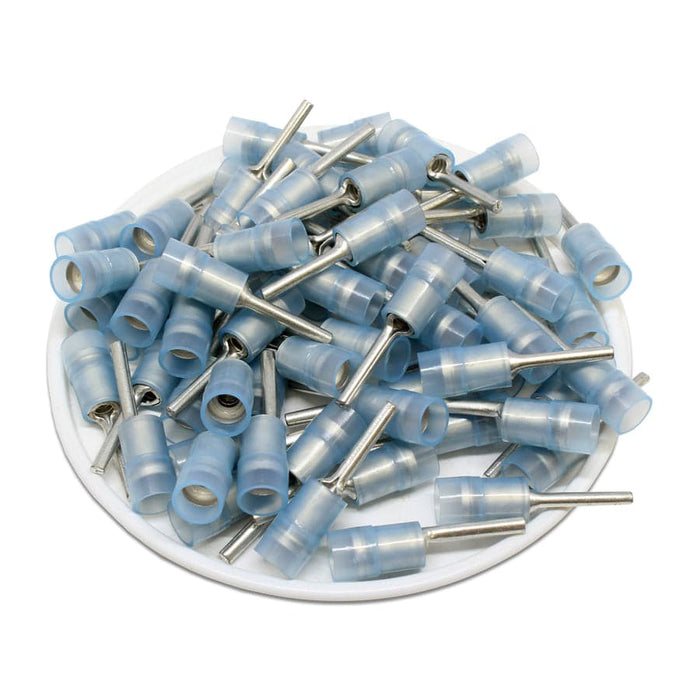

PTNYD2-13 - Nylon Insulated Pin Terminals - 16-14 AWG - Double Crimp

Precio original $15.85 - Precio original $15.85
Precio original
$15.85
$15.85 - $15.85
Precio actual $15.85
SKU PTNYD2-13
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

PRODUCT DESCRIPTION

Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.

DIMENSIONS AND FEATURES
T: 0.8mm (0.031") Wire Range: 16-14 AWG
L: 23.8mm (0.94") Color: Blue
F: 13mm (0.51") Insulation: Nylon
E: 11mm (0.43") Material: Tin-Plated Copper
W: 1.9mm (0.075") Max Temperature Rating: 105oC
D: 5.2mm (0.21") Max Volt Rating: 600 Volts
D1: 2.3mm (0.091") Max Electrical Current: 30AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Complinat: Yes

TECHNICAL DRAWING

Cross Reference Parts:

Click to view data sheet
