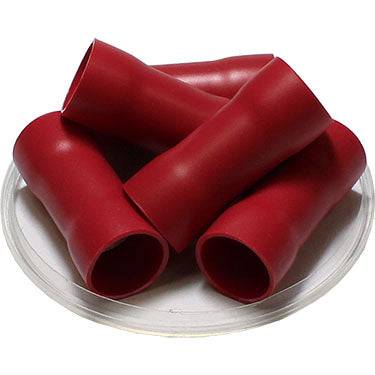

PVT38 - Vinyl Insulated Parallel Connector - 2AWG - Ferrules Direct

PVT38 - Vinyl Insulated Parallel Connector - 2AWG

$32.20 - $32.20
$32.20
$32.20 - $32.20
$32.20
SKU PVT38
Disponibilidad:
en stock, listo para ser enviado
true

PRODUCT DESCRIPTION

Insulated Parallel splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively, For use with copper wires only.
DIMENSIONS AND FEATURES
L: 39.5mm (1.49") Wire Range: 2AWG
D: 15mm (0.61") Material: Tin-Plated Copper - Seamless
D1 9.5mm (0.37") Insulation: Vinyl
Color: Red
Configuration: Flared
Max Temperature Rating: 75oC (167oF)
Max Electrical Current: 170AMP
CE Certified Yes
RoHS Compliant: Yes

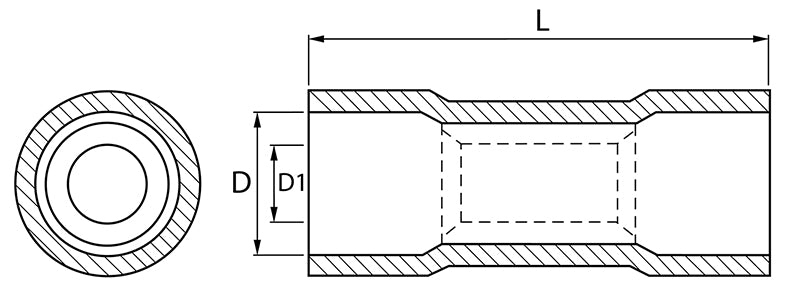

TECHNICAL DRAWING

Cross Reference Parts:

Click to view data sheet

For more information check out our YouTube channel!
