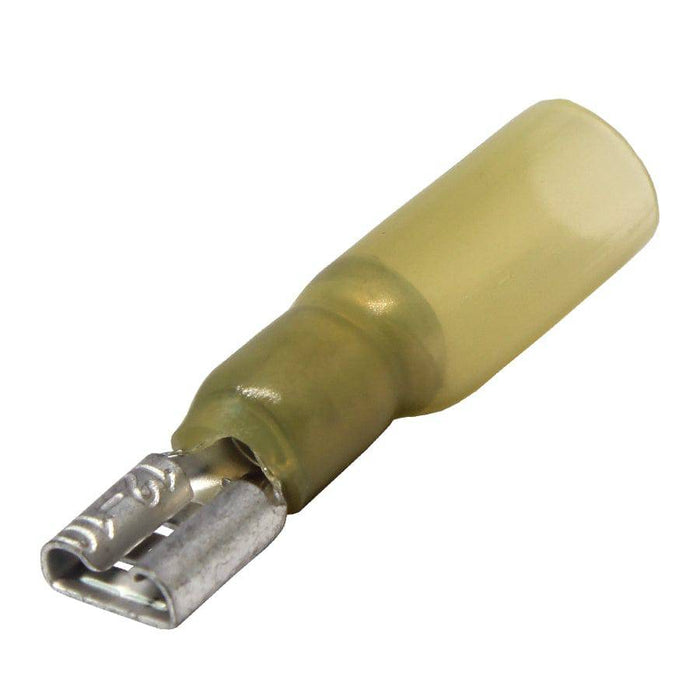

12 to 10 AWG Heat Shrink Quick Disconnects, Female, Tab: 0.248", Polyolefin, 25 Pieces - QDSF102-63

Precio original $7.73 - Precio original $7.73
Precio original
$7.73
$7.73 - $7.73
Precio actual $7.73
SKU QDSF102-63
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 25 Pieces

HEAT SHRINKABLE QUICK DISCONNECTS

Heat shrink insulated quick disconnects are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 12 to 10 AWG
Nema Tab: 0.248" (6.3mm)
Color: Yellow
Temperature Rating: -67oF to 221oF (-55oC to 128oC)
Heat Shrink Insulation: Polyolefin
Terminal Material: Tin-Plated Copper
D: 6.8mm (0.27")
D1: 3.4mm (0.13")
B: 6.6mm (0.26")
E: 25.0mm (0.98")
L: 32.0mm (1.26")


DRAWING:


Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:
