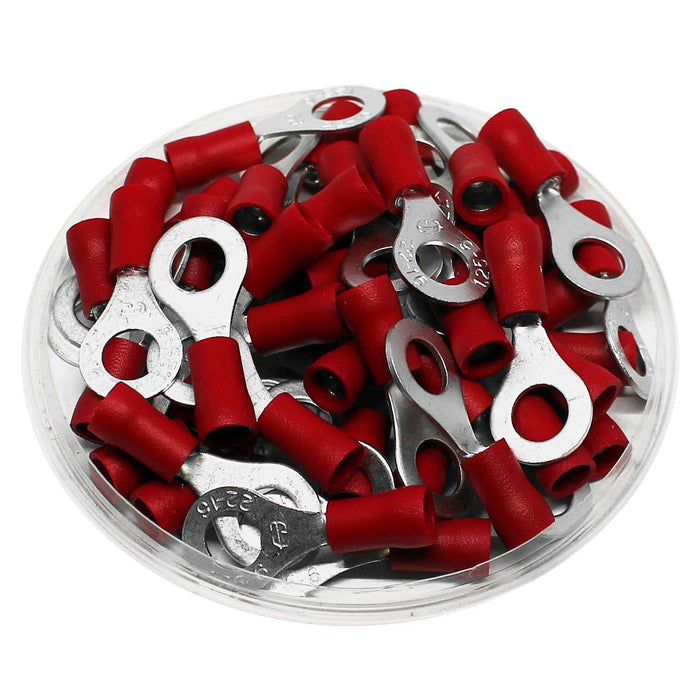

RD1-6 - Double Crimp Vinyl Insulated Ring Terminals - 22-16 AWG - 1/4" Stud
Precio original
$12.31
-
Precio original
$12.31
Precio original
$12.31
$12.31
-
$12.31
Precio actual
$12.31
SKU RD1-6
Disponibilidad:
en stock, listo para ser enviado
Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.
Dimensions & Features:
Wire Size: | 22-16 AWG |
Stud Size: | 1/4" Stud |
Color: | Red |
T: | 0.75mm (.03") |
L: | 27.3mm (1.08") |
F: | 11.0mm (0.43") |
E: | 10.5mm (0.41") |
W: |
11.6mm (0.46") |
D: |
4.2mm (0.17") |
D1: |
1.7mm (.07") |
D2: | 6.4mm (0.25") |
Terminal Insulation: | Vinyl |
Terminal Material: | Tin-Plated Copper |
Max Voltage Rating: | 105°C - 600 Volts |
Max Electrical Current: | 18AMP |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
