16 AWG Insulated Wire Ferrules, 8mm Pin, Black, 4000 pieces Reel/Spool - RD15008
INSULATED WIRE FERRULES - REEL/SPOOL
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
These ferrules come in a continuous reel of 4,000 pieces. The reel is made of corrugated cardboard with a plastic spindle that is universally accepted on a wide variety automatic crimping machines.
DIMENSIONS & FEATURES:
| Wire Size: | 16 AWG |
| Color: | Black |
| Pin Length: | 8mm (0.31") |
| Material: | Tin Plated Copper & Polypropylene |
| L1: | 14.5mm (0.57") |
| L2: | 8.0mm (0.31") |
| D: | 2mm (0.07") |
| D1: | 1.7mm (0.06") |
| D2: | 3.5mm (0.13") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Temperature Rating: | 221°F (105°C) |
| Max Electrical Rating: | 600 Volts |
| Max Electrical Current: | 18 AMP |

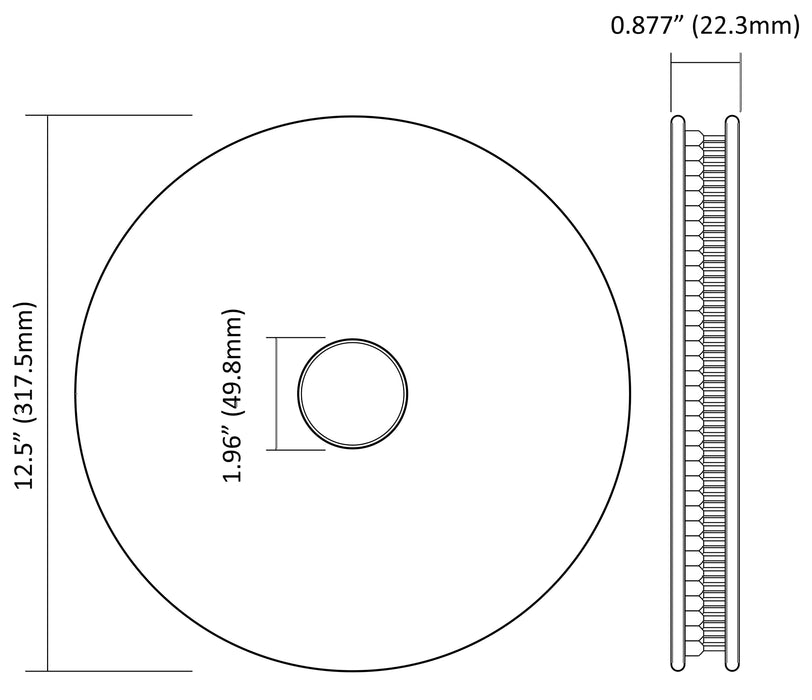

DRAWING:
Cross References
Cross Reference Parts:
ABB: 30445703
Altech Corp: 2841.0 FID1608
American Electrical: 1183015 - 1181015
Automation Direct: BM-00604 V30AE000048
Crimp Supply: 13A11008
Eclipse: 701-100
Elecdirect: FER-16-8D
Greenlee: 472/8
LeGrand: 377 64
McMaster-Carr: 7950K94 7950K23
Panduit: FSF78-8-D FSD78-8-D
Phoenic Contact: 3200917 - 3200043
SPC Technology: SPC4516 84N2050
TE Connectivity: 1-966067-2
Thomas Betts: F4027 F2031
Tyco AMP: 1-966 067-2
WAGO: 216-203
Weidmuller: 9019120000
Wieland: 06.600.2327.0
ZF: V3AE0048 V30AE000048
Documents
Click to view product spec sheet:
