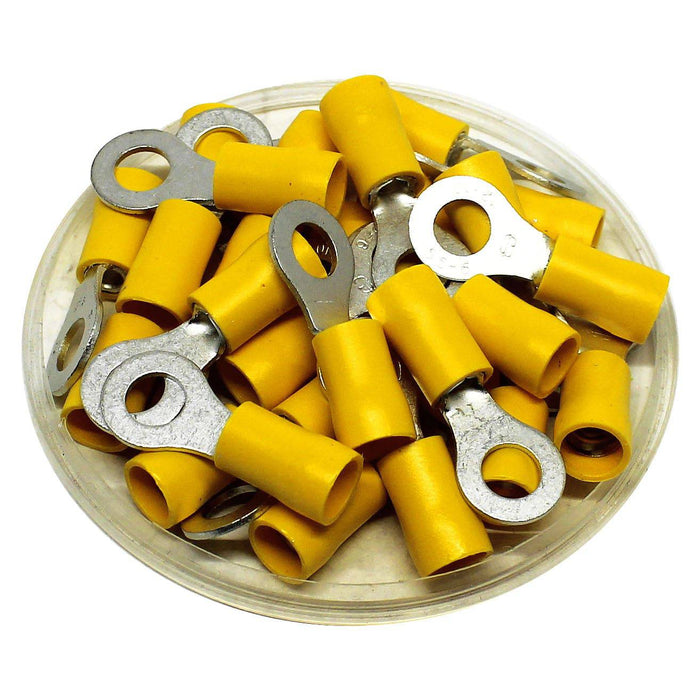

RD5-6 - Double Crimp Vinyl Insulated Ring Terminals - 12-10 AWG - 1/2" Stud
Precio original
$10.76
-
Precio original
$10.76
Precio original
$10.76
$10.76
-
$10.76
Precio actual
$10.76
SKU RD5-6
Disponibilidad:
en stock, listo para ser enviado
Ring terminal design offers a tight and secure connection in high vibration areas, Vinyl insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.
Dimensions & Features:
Wire Size: |
12-10 AWG |
Stud Size: | 1/4" Stud |
Color: | Yellow |
T: | 1mm (.04") |
L: | 29mm (1.14") |
F: | 10.5mm (0.41") |
E: | 13.5mm (0.53") |
W: | 12mm (0.47") |
D: | 6.8mm (0.27") |
D1: | 3.4mm (0.13") |
D2: | 6.4mm (0.25") |
Terminal Insulation: | Vinyl |
Terminal Material: | Tin-Plated Copper |
Max Voltage Rating: | 105°C - 600 Volts |
Max Electrical Current: | 50 AMP |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
